SolarisTM 2.x - Tuning Your TCP/IP Stack and More

Last update : 24.05.2002
(change log)

Please check your location line carefully. If you don’t see <A
HREF="" CLASS="external"
TARGET="external"> in your location bar, you
might want to check with the original site for the most up to date

Important Notice !

SUN managed to publish a HREF="">Solaris
Tunable Parameters Reference Manual,
applying to Solaris 8, HW 01/01.
You might want to check there for anything you miss here. Another good
read is HREF="">Solaris
Operating Environment Network Settings for Security
, if you are
concerned about security and denial-of-service attacks.

Table of contents

  1. Introduction
    1.1 History
    1.2 Quick intro into ndd
    1.3 How to read this document
  2. TCP connection initiation
  3. Retransmission related parameters
  4. Path MTU discovery
  5. Further advice, hints and remarks
    5.1 Common TCP timers
    5.2 Erratic IPX behaviors
    5.3 Common IP parameters
    5.4 TCP and UDP port related parameters
  6. Windows, buffers and watermarks
  7. Tuning your system
    7.1 Things to watch
    7.2 General entries in the file /etc/system
    7.3 System V IPC related entries
    7.4 How to find further entries
  8. 100 Mbit ethernet and related entries
    8.1 The hme interface
    8.2 Other problems
  9. Recommended patches
  10. Literature
    10.1 Books
    10.2 Internet resources
    10.3 RFC, mentioned and otherwise
    10.4 Further material
  11. Solaris’ Future
    11.1 Solaris 7
    11.2 Solaris 8
    11.3 Solaris 9
  12. Uncovered material
  13. Scripts
  14. List of things to do

Appendices are separate documents. They are quoted from within the text,
but you might be interested in them when downloading the current
document. If you say "print" for this document, the appendices will
not be printed. You have to download and print them

  1. Simple transactions using TCP
  2. System V IPC parameter
  3. Retransmission behavior
  4. Slow start implications
  5. The change log
  6. Glossary (first attempt)
  7. Index (first attempt)

1. Introduction

Use at your own risk !

If your system behaves erratically after applying some tweaks, please don’t
blame me. Remember to have a backup handy before starting to tune. Always
make backup copies of the files you are changing. I tried carefully to
assemble the information you are seeing here, aimed at improved system
performance. As usual, there are no guarantees that what worked for me will
work for you. Please don’t take my recommendation at heart : They are
starting points, not absolutes. Always read my reasoning, don’t use them

Before you start, you ought to grab a copy of the TCP state
transition diagram
as specified in <A
TARGET="external" CLASS="external">RFC 793 on page 23. The drawback is
the missing error correction supplied by later RFCs. There is an easier way
to obtain blowup printouts to staple to your office walls. Grab a copy of
the CLASS="external">PostScript file pocket guide, page 2 accompanying
Stevens’ TCP/IP Illustrated Volume 1 [4]. Or simply
open the book at figure 18.12.

Please share your knowledge

I try to assemble this page and related material for everybody
interested in gaining more from her or his system. If you have an item I
didn’t cover, but which you deem worthwhile, please <A
HREF="">write to me. A few dozen or
so regular readers of this page will thank you for it. I am only human,
thus if you stumble over an error, misconception, or blatant nonsense,
please have me correct it. In the past, there were quite a few mistakes.

The set of documents may look a trifle colorful, or just odd, if your
browser supports cascading stylesheets. Care was taken to select the
formatting tags in a way that the printed output still resembles the
intentions of the author, and that the set of documents is still viewable
with browser like Mosaic or Lynx. Stylesheets were used as an optical
enhancement. Most notable is the different color of interior and external
links. Interior links are
shown in greenish colors
, and will be rendered within the same
frame. External links on
the other hand are shown in bluish colors,
and all will be shown in
the same new frame. If you leave it open, a new external link will be shown
within the same window. Literature references within the text are often
interior links, pointing to the literature section, where the external
links are located.

1.1 History

This page and the related work have a long history in gathering. I
started out peeking wide eyed over the shoulders of two people from <A
HREF="" TARGET="external" CLASS="external">a search
engine provider when they were installing the <A
HREF="" TARGET="external" CLASS="external">German server
of a customer of CLASS="external">my former employer. My only alternative resource of
tuning information was the brilliant book TCP/IP
Illustrated 1 [4]
by Stevens. I started gathering all information about
tuning I was able to get my hands upon. The cumulation of these you are
experiencing on these pages.

1.2 Quick intro into ndd

Solaris allows you to tune, tweak, set and reset various parameters
related to the TCP/IP stack while the system is running. Back in
the SunOS 4.x days, one had to change various C files in the kernel source
tree, generate a new kernel, reboot the machine and try out the changes.
The Solaris feature of changing the important parameters on the fly is very

Many of the parameters I mention in the rest of the document you are
reading are time intervals. All intervals are measured in
milliseconds. Other parameters are usually bytecounts, but
a few times different units of measurements are used and documented. A few
items appear totally unrelated to TCP/IP, but due to the lack of a better
framework, they materialized on this page.

Most tunings can be achieved using the program ndd. Any
user may execute this program to read the current settings, depending on
the readability of the respective device files. But only the super user is
allowed to execute ndd -set to change values. This makes sense
considering the sensitive parameters you are tuning. Details on the use of
ndd can be obtained from the respective manual page.

ndd will become your friend, as it is the major tool to
tweak most of the parameters described in this document. Therefore you
better make yourself familiar with it. A quick overview will be given in
this section, too. ndd is not limited to tweaking TCP/IP
related parameters. Many other devices, which have a device file underneath
/dev and a kernel module can be configured with the help of
ndd. For instance, any networking driver which supports the
Data Link Provider Interface (DLPI) can be configured.

The parameters supplied to ndd are symbolic keys indexing
either a single usually numerically value, or a table. Please note that the
keys usually (but not always) start out with the module or device name. For
instance, changing values of the IP driver, you have to use the device file
/dev/ip and all parameters start out with ip_.
The question mark is the most notable exception to this rule.

1.2.1 Interactive mode

The interactive mode allows you to inspect and modify a device, driver
or module interactively. In order to inspect the available keyword names
associated with a parameter, just type the question mark. The next item
will explain about the output format of the parameter list.

# ndd /dev/tcp
name to get/set ? tcp_slow_start_initial
value ?
length ?
name to get/set ? ^D

The example above queries the TCP driver for the value of the slow start
feature in an interactive fashion. The typed input is shown boldface.

1.2.2 Show all available parameters

If you are interested in the parameters you can tweak for a given
module, query for the question mark. This special parameter name is part
of all ndd configurable material. It tells the names of all
parameters available - including itself - and the access mode of the

# ndd /dev/icmp ~?
 ?                             (read only)
icmp_wroff_extra              (read and write)
icmp_def_ttl                  (read and write)
icmp_bsd_compat               (read and write)
icmp_xmit_hiwat               (read and write)
icmp_xmit_lowat               (read and write)
icmp_recv_hiwat               (read and write)
icmp_max_buf                  (read and write)

Please mind that you have to escape the question mark with a backslash
from the shell, if you are querying in the non-interactive fashion as
shown above.

1.2.3 Query the value of one or more parameters (read access)

At the command line, you often need to check on settings of your
TCP/IP stack or other parameters. By supplying the parameter name, you
can examine the current setting. It is permissible to mention several
parameters to check on at once.

 # ndd /dev/udp udp_smallest_anon_port
 # ndd /dev/hme link_status link_speed link_mode



The first example checks on the smallest anonymous port UDP may use when
sending a PDU. Please refer to the appropriate section later in this
document on the recommended settings for this parameter.

The second example checks the three important link report values of a
100 Mbit ethernet interface. The results are separated by an empty line,
because some parameters may refer to tabular values instead of a single

1.2.4 Modify the value of one parameter (write access)

This mode of interaction with ndd will frequently be
found in scripts or when changing value at the command line in a
non-interactive fashion. Please note that you may only set one value
at a time. The scripts section below contains
examples in how to make changes permanent using a startup script.

 # ndd -set /dev/ip ip_forwarding 0

The example will stop the forwarding of IP PDUs, even if more than
one non-local interface is active and up. Of course, you can only
change parameters which are marked for both, reading and writing.

1.2.5 Further remarks

Andres Kroonmaa kindly supplied a nifty script to
check all existing values for a network component (tcp, udp, ip, icmp,
etc.). Usually I do the same thing using a small
Perl script.

1.3 How to read this document

This document is separated into several chapters with little
inter-relation. It is still advisable to loosely follow the order outlined
in the table of contents.

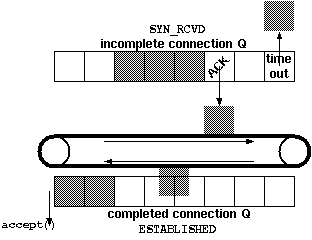

The first chapter entirely focusses on the TCP connection queues. It is
quite long for such small topic, but it is also meant to introduce you into
my style of writing. The next chapter deals with TCP retransmission related
parameters that you can adjust to your needs. The chapter is more concise.
One chapter on deals with path MTU discovery, as there used to be problems
with older versions of Solaris. Recent versions usually do not need any

The fifth chapter is a kind of catch-all. Some TCP, some UDP and some IP
related parameters are explained (forwarding, port ranges, timers), and a
quick detour into bug 1226653 explains that some versions were capable of
sending packages larger than the MTU. The following chapter in depth deals
with windows, buffers and related issues.

Chapter seven detours from the ndd interface, and focusses
on variables you can set in your /etc/system file, as some
things can only be thus managed. Another part of that chapter deals with
the hme interface and appropriate tunables. The chapter may be
split in future, and parts of it are already found in the appendices.

The chapter dealing with patches, an important topic with any OS, just
points you to various sources, and only mentions some essential things for
older versions of Solaris.

Literature exists in abundance. The literature sections is more a lose
collection of links and some books that I consider essential when working
with TCP/IP, not limited to Solaris. The RFC sections is kind of hard to
keep up-to-date, but then, I reckon you know how to read the rfc-index

The final chapters quickly glance at new or at one time new versions of
Solaris - time makes them obsolete. The chapter is there for historical
reason, more or less. The scripts sections deals with the
nettune script used by TARGET="external">YaSSP. It finishes with some TODO material.

2. TCP connection initiation

This section is dedicated exclusively to the various queues and tunable
variable(s) used during connection instantiation. The socket API maintains
some control over the queues. But in order to tune anything, you have to
understand how listen and accept interact with
the queues. For details, see the various Stevens books mentioned in the
literature section.

When the server calls listen, the kernel moves the socket from
the TCP state CLOSED into the state LISTEN, thus
doing a passive open. All TCP servers work like this. Also, the kernel

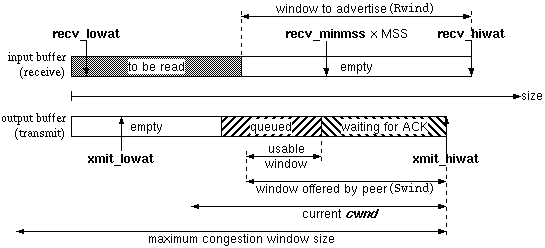

creates and initializes various data structures, among them the <A
HREF="#water">socket buffers and two queues :

incomplete connection queue

This queue contains an entry for every SYN that has
arrived. BSD sources assign so_q0len entries to this
queue. The server sends off the ACK of the client’s
SYN and the server side SYN. The connection
get queued and the kernel now awaits the completion of the TCP three
way handshake to open a connection. The socket is in the
SYN_RCVD state. On the reception of the client’s
ACK to the server’s SYN, the connection stays
one round trip time (RTT) in this queue before the kernel
moves the entry into the

completed connection queue

This queue contains an entry for each connection for
which the three way handshake is completed. The socket is in the
ESTABLISHED state. Each call to accept()
removes the front entry of the queue. If there are no entries in the
queue, the call to accept usually blocks. BSD source
assign a length of so_qlen to this queue.

Both queues are limited regarding their number of entries. By calling
listen(), the server is allowed to specify the size of the
second queue for completed connections. If the server is for whatever
reason unable to remove entries from the completed connection
, the kernel is not supposed to queue any more connections. A
timeout is associated with each received and queued SYN
segment. If the server never receives an acknowledgment for a queued
SYN segment, TCP state SYN_RCVD, the time will
run out and the connection thrown away. The timeout is an important
resistance against SYN flood attacks.

A model of TCP listening queues   TCP connection initiation timing diagram
Figure 1 : Queues maintained for listening sockets.   Figure 2 : TCP three way handshake, connection initiation.

Historically, the argument to the listen function specified the maximum
number of entries for the sum of both queues. Many BSD derived
implementations multiply the argument with a fudge factor of 3/2.
Solaris <= 2.5.1 do not use the fudge factor, but adds 1, while Solaris
2.6 does use the fudge factor, though with a slightly different rounding
mechanism than the one BSD uses. With a backlog argument of 14, Solaris
2.5.1 servers can queue 15 connections. Solaris 2.6 server can queue 22

Stevens shows that the incomplete connection queue does need
more entries for busy servers than the completed
connection queue. The only reason for specifying a large backlog value is
to enable the incomplete connection queue to grow as SYN
arrive from clients. Stevens shows that moderately busy webserver has an
empty completed connection queue during 99 % of the time, but the
incomplete connection queue needed 15 or less entries in 98 % of
the time ! Just try to imagine what this would mean for a really busy
webcache like CLASS="external">Squid.

Data for an established connection which arrives before the connection is
accept()ed, should be stored into the socket buffer. If the
queues are full when a SYN arrived, it is dropped in the hope
that the client will resend it, hopefully finding room in the queues

According to Cockroft [2], there was only one
listen queue for unpatched Solari <= 2.5.1. Solari >= 2.6 or an
applied TCP patch 103582-12 or above splits the single queue in the two
shown in figure 1. The system administrator is allowed to tweak and
tune the various maxima of the queue or queues with Solaris. Depending on
whether there are one or two queues, there are different sets of
tweakable parameters.

The old semantics contained just one tunable parameter
tcp_conn_req_max which specified the maximum argument for
the listen(). The patched versions and Solaris 2.6 replaced
this parameter with the two new parameters
tcp_conn_req_max_q0 and
tcp_conn_req_max_q. A <A
TARGET="external" CLASS="external">SunWorld article on 2.6 by Adrian
Cockroft tells the following about the new parameters :

tcp_conn_req_max [is]
replaced. This value is well-known as it normally needs to be increased for
Web servers in older releases of Solaris 2. It no longer exists in Solaris
2.6, and patch 103582-12 adds this feature to Solaris 2.5.1. The change is
part of a fix that prevents denial of service from SYN flood
attacks. There are now two separate queues of partially complete
connections instead of one.

is the maximum number of connections with handshake incomplete. A
SYN flood attack could only affect this queue, and a special
algorithm makes sure that valid connections can still get through.

tcp_conn_req_max_q is
the maximum number of completed connections waiting to return from an
accept call as soon as the right process gets some CPU time.

In other words, the first specifies the size of the incomplete
connection queue
while the second parameters assigns the maximum
length of the completed connection queue. All
three parameters are covered below.

You can determine if you need to tweak this set of parameters by
watching the output of netstat -sP tcp. Look for the value of
tcpListenDrop, if available on your version of Solaris. Older
versions don’t have this counter. Any value showing up might indicate
something wrong with your server, but then, killing a busy server (like
squid) shuts down its listening socket, and might increase this counter
(and others). If you get many drops, you might need to increase the
appropriate parameter. Since connections can also be dropped, because
listen() specifies a too small argument, you have to be
careful interpreting the counter value. On old versions, a SYN
flood attack might also increase this counter.

Newer or patched versions of Solaris, with both queues available, will
also have the additional counters tcpListenDropQ0 and
tcpHalfOpenDrop. Now the original counter
tcpListenDrop counts only connections dropped from the
completed connection queue, and the counter ending in
Q0 the drops from the incomplete connection queue.
Killing a busy server application might increase either or both counters.
If the tcpHalfOpenDrop shows up values, your server was likely
to be the victim of a SYN flood. The counter is only
incremented for dropping noxious connection attempts. I have no idea, if
those will also show up in the Q0 counter, too.

default 8 (max. 32), since 2.5 32 (max. 1024), recommended 128 <= x <= 1024
since 2.6 or 2.5.1 with patches 103630-09 and 103582-12 or above applied :
see tcp_conn_req_max_q and tcp_conn_req_max_q0

The current parameter describes the maximum number of pending connection
requests queued for a listening endpoint in the completed connection
The queue can only save the specified finite number of
requests. If a queue overflows, nothing is sent back. The client will time
out and (hopefully) retransmit.

The size of the completed connection queue does not influence
the maximum number of simultaneous established connections after they were
accepted nor does it have any influence on
the maximum number of clients a server can serve. With Solaris, the maximum
number of file descriptors is the limiting factor for simultaneous
connections, which just happened to coincide with the maximum backlog queue

From the viewpoint of TCP those connections placed in the completed
connection queue
are in the TCP state ESTABLISHED, even
though the application has not reaped the connection with a call to
accept. That is the number limited by the size of the queue,
which you tune with this parameter. If the application, for some reason,
does not release entries from the queue by calling accept, the
queue might overflow, and the connection is dropped. The client’s TCP will
hopefully retransmit, and might find a place in the queue.

Solaris offers the possibility to place connections into the backlog
queue as soon as the first SYN arrives, called eager
. The three way handshake will be completed as soon as the
application accept()s the connection. The use of eager
is not recommended for production systems.

Solari < 2.5 have a maximum queue length of 32 pending connections.
The length of the completed connection queue can also be used to
decrease the load on an overloaded server : If the queue is completely
filled, remote clients will be denied further connections. Sometimes this
will lead to a connection timed out error message.

Naively, I assumed that a very huge length might lead to a long service
time on a loaded server. Stevens showed that the incomplete connection
needs much more attention than the completed connection
. But with tcp_conn_req_max you have no option
to tweak that particular length.

Earlier versions of this document suggested to tune
tcp_conn_req_max with regards to the values of <A
HREF="#rlim_fd_max">rlim_fd_max and <A
HREF="#rlim_fd_cur">rlim_fd_cur, but the interdependencies are
more complex than any rule of thumb. You have to find your own ideal. When
a connection is still in the queue, only the queue length limits the number
of entries. Connections taken from the queue are put into a file descriptor

There is a trick to overcome the hardcoded limit of 1024 with a patch.
TARGET="external" CLASS="external">SunSolve shows this trick in
connection with SYN flood attacks. A greatly increased listen
backlog queue may offer some small increased protection against this
vulnerability. On this topic also look at the <A
parameter. Better, use the mentioned TCP patches, and increase the q0

echo "tcp_param_arr+14/W 0t10240" | adb -kw /dev/ksyms /dev/mem

This patch is only effective on the currently active kernel, limiting its
extend to the next boot. Usually you want to append the line above on the
startup script /etc/init.d/inetinit. The shown patch increases
hard limit of the listen backlog queue to 10240. Only
applying this patch you may use values above 1024 for the
tcp_conn_req_max parameter.

A further warning : Changes to the value of
tcp_conn_req_max parameter in a running system
will not take effect
until each listening application is
restarted. The backlog queue length is evaluated whenever an application
calls listen(3N), usually once during startup. Sending a HUP
signal may or may not work ; personally I prefer to TERM the application and
restart them manually or, even better, use a startup script.

since 2.5.1 with patches 103630-09 and 103582-12 or above applied : default 1024 ;
since 2.6 : default 1024, recommended 1024 <= x <= 10240

After installing the mentioned TCP patches, alternatively after
installing Solaris 2.6, the parameter
is no longer available. In its stead
the new parameters tcp_conn_req_max_q and
tcp_conn_req_max_q0 emerged.
tcp_conn_req_max_q0 is the maximum number of connections
with handshake incomplete, basically the length of the incomplete
connection queue

In other words, the connections in this queue are just being
instantiated. A SYN was just received from the client, thus
the connection is in the TCP SYN_RCVD state. The connection
cannot be accept()ed until the handshake is complete, even if
the eager listening is active.

To protect against SYN flooding, you can increase this
parameter. Also refer to the parameter
above. I believe that changes won’t
take effect unless the applications are restarted.

since 2.5.1 with patches 103630-09 and 103582-12 or above applied : default 128 ;
since 2.6 : default 128, recommended 128 <= x <= tcp_conn_req_max_q0

After installing the mentioned TCP patches, alternatively after installing
Solaris 2.6, the parameter
is no longer available. In its stead
the new parameters tcp_conn_req_max_q and
tcp_conn_req_max_q0 emerged.
tcp_conn_req_max_q is the length of the completed
connection queue.

In other words, connections in this queue of length
tcp_conn_req_max_q have completed the three way handshake
of a TCP open. The connection is in the state ESTABLISHED.
Connections in this queue have not been accept()ed by the
server process (yet).

netstat -sP tcp command reports the
number of dropped connections due to overrun in some queue. —>

Also refer to the parameter
. Remember that changes won’t take
effect unless the applications are restarted.

Since 2.6 : default 1, recommended : don’t touch

This parameter specifies the minimum number of available connections
in the completed connection queue for select()
or poll() to return "readable" for a listening (server)
socket descriptor.

Programmers should note that Stevens [7] describes a
timing problem, if the connection is RST between the
select() or poll() call and the subsequent
accept() call. If the listening socket is blocking, the
default for sockets, it will block in accept() until a
valid connection is received. While this seems no tragedy with a
webserver or cache receiving several connection requests per second,
the application is not free to do other things in the meantime, which
might constitute a problem.

3. Retransmission related parameters

The retransmission timeout values used by Solaris are way too
aggressive for wide area networks, although they can be considered
appropriate for local area networks. SUN thus did not follow the
suggestions mentioned in
TARGET="external" CLASS="external">RFC 1122. Newer releases of the
Solaris kernel are correcting the values in question :

The recommended upper and lower bounds on the RTO are known to be inadequate on large internets. The lower bound SHOULD be measured in fractions of a second (to accommodate high speed LANs) and the upper bound should be 2*MSL, i.e., 240 seconds.

Besides the retransmit timeout (RTO) value two further
parameters R1 and R2 may be of interest. These don’t seem to be tunable via
any Solaris’ offered interface that I know of.

The value of R1 SHOULD correspond to at least 3
retransmissions, at the current RTO. The value of R2 SHOULD
correspond to at least 100 seconds.


However, the values of R1 and R2 may be different for SYN
and data segments. In particular, R2 for a SYN segment MUST
be set large enough to provide retransmission of the segment
for at least 3 minutes. The application can close the
connection (i.e., give up on the open attempt) sooner, of

Great many internet servers which are running Solaris do retransmit
segments unnecessarily often. The current condition of European networks
indicate that a connection to the US may take up to 2 seconds. All
parameters mentioned in the first part of this section relate to each
other !

As a starter take this little example. Consider a picture, size 1440
byte, LZW compressed, which is to be transferred over a serial linkup with
14400 bps and using a MTU of 1500. In the ideal case only one PDU gets
transmitted. The ACK segment can only be sent after
the complete PDU is received. The transmission takes about 1 second. These
values seem low, but they are meant as ’food for thought’. Now consider
something going awry...

Solaris 2.5.1 is behaving strange, if the initial SYN
segment from the host doing the active open is lost. The initial
SYN gets retransmitted only after a period of 4 *
tcp_rexmit_interval_initial plus a constant C. The time is 12
seconds with the default settings. More information is being prepared on
the retransmission test page.

The initial lost SYN may or may not be of importance in
your environment. For instance, if you are connected via ATM SVCs, the
initial PDU might initiate a logical connection (ATM works point to point)
in less than 0.3 seconds, but will still be lost in the process. It is
rather annoying for a user of 2.5.1 to wait 12 seconds until something

default 500, since 2.5.1 3000, recommended >= 2000 (500 for special purposes)

This interval is waited before the last data sent is retransmitted due
to a missing acknowledgment. Mind that this interval is used only for the
first retransmission. The more international your server is, the
larger you should chose this interval.

Special laboratory environments working in LAN-only environments might
be better off with 500 ms or even less. If you are doing measurements
involving TCP (which is almost always a bad idea), you should consider
lowering this parameter.

Why do I consider TCP measurements a bad idea ? If ad-hoc approaches are
used, or there is no deeper knowledge of the mechanics of TCP, you are
bound to arrive at wrong conclusions. Unless there are TCP dumps to
document that indeed what you expect is actually happening, results may
lead to wrong conclusions. If done properly, there is nothing wrong with
TCP measurements. The same rules apply, if you are measuring protocols on
top of TCP.

There are lots of knobs and dials to be fiddled with - all of which need
to be documented along with the results. Scientific experiments need to be
repeatable by others in order to verify your findings.

default 200, recommended >= 1000 (200 for special purposes)
Since 8 : default 400

After the initial retransmission further retransmissions will start after
the tcp_rexmit_interval_min interval. BSD usually
specifies 1500 milliseconds. This interval should be tuned to the value
of tcp_rexmit_interval_initial, e.g. some value between
50 % up to 200 %. The parameter has no effect on retransmissions during an
active open, see my accompanying document on

The tcp_rexmit_interval_min doesn’t display any influence
on connection establishment with Solaris 2.5.1. It does with 2.6,
though. The influence on regular data retransmissions, or FIN
retransmissions I have yet to research.

default 120000, since 2.5 480000, recommended 600000

This interval specifies how long retransmissions for a connection
in the ESTABLISHED state should be tried before a
RESET segment is sent. BSD systems default to 9 minutes.

You don’t want your connections to fail too quickly once they are in
the ESTABLISHED state. A reader reported that Veritas backup
clients might fail with "socket write failed". Veritas recommends not to
set above parameter below 8 minutes.

default ?, recommended ?

According to an unconfirmed user report, the parameter is the abort
interval for passive connections, i.e. those received on ports in the
LISTEN state. Refer to the
for details, as there is some confusion between what SunSolve says and what
can be read in Stevens.

default 240000, since 2.5 180000, recommended ?

This interval specifies how long retransmissions for a remote host are
repeated until the RESET segment is sent. The difference to
the tcp_ip_abort_interval parameter is that this
connection is about to be established - it has not yet reached the state
ESTABLISHED. This value is interesting considering
SYN flood attacks on your server. Proxy server are doubly
handicapped because of their Janus behavior (like a server towards the
downstream cache, like a client towards the upstream server).

According to Stevens this interval is connected to the active
, e.g. the connect(3N) call. But according to

the interval has an impetus on both
directions. A remote client can refuse to acknowledge an opening connection
up to this interval. After the interval a RESET is sent. The
other way around works out, too. If the three-way handshake to open a
connection is not finished within this interval, the RESET
Segment will be sent. This can only happen, if the final ACK
went astray, which is a difficult test case to simulate.

To improve your SYN flood resistance, SUN suggests to use
an interval as small as 10000 milliseconds. This value has only been tested
for the "fast" networks of SUN. The more international your connection is,
the slower it will be, and the more time you should grant in this interval.
Proxy server should never lower this value (and should let <A
HREF="" TARGET="external" CLASS="external">Squid
terminate the connection). Webservers are usually not affected, as they
seldom actively open connections beyond the LAN.

default 60000, RFC 1122 recommends 240000 (2MSL), recommended 1...2 * tcp_close_wait_interval or tcp_time_wait_interval
Since 2.6 : default 240000
Since 8 : default 60000

All previously mentioned retransmissions related interval use an
exponential backoff algorithm. The wait interval between two
consecutive retransmissions for the same PDU is doubled starting with the

The tcp_rexmit_interval_max interval specifies the
maximum wait interval between two retransmissions. If changing this value,
you should also give the abort interval an inspection. The maximum wait
interval should only be reached shortly before the abort interval timer
expires. Additionally, you should coordinate your interval with the value
or tcp_time_wait_interval.

default 50, BSD 200, recommended 200 (regular), 50 (benchmarking), or 500 (WAN server)
Since 8 : default 100

This parameter specifies the timeout before sending a delayed
. The value should not be increased above
as required by
TARGET="external" CLASS="external">RFC 1122. This value is of great
interest for interactive services. A small number will increase the
"responsiveness" of a remote service (telnet, X11), while a larger value
can decrease the number of segments exchanged.

The parameter might also interest to HTTP servers which transmit small
amounts of data after a very short retrieval time. With a heavy-duty
servers or in laboratory banging environment, you might encounter service
times answering a request which are well above 50 ms. An increase to 500
might lead to less PDUs transferred over the network, because TCP is able
to merge the ACK with data. Increases beyond 500 should
be even considered.

TARGET="external" CLASS="external">SUN claims that Solaris recognizes
the initial data phase of a connection. An initial ACK (not
SYN) is not delayed. As opposed to the simplistic
approach mentioned in the SUN paper, a request for a webservice (both,
server or proxy) which does not fit into a single PDU can be transmitted
faster. Also check the
tcp_slow_start_initial Parameter.

The tcp_deferred_ack_interval also seems to be used to
distinguish full-sized segments between interactive traffic and bulk data
transfer. If a sender uses MSS sized segments, but sends each segment
further apart than approximately 0.9 times the interval, the traffic will
be rated interactive, and thus every segment seems to get ACKed.

Since 2.6 : default 8, recommended ?, maximum 16

This parameter features the maximum number of segments received after
which an ACK just has to be sent. Previously I thought this parameter
solely related to interactive data transfer, but I was mistaken. This
parameter specifies the number of outstanding ACKs. You can
give it a look when tuning for high speed traffic and bulk transfer, but
the parameter is controversial. For instance, unless you employ selective
acknowledgments (SACK) like Solaris 7, you can only ACK the number of
segments correctly received. With the parameter at a larger value,
statistically the amount of data to retransmit is larger.

Good values for retransmission tuning don’t beam into existence from a
white source. Rather you should carefully plan an experiment to get decent
values. Intervals from another site can not be carried
over to another Solaris system without change. But they might give you an
idea where to start when choosing your own values.

The next part looks at a few parameters having to do with
retransmissions, as well.

Since 2.5.1 with patch 103582-15 applied : default 1
Since 2.6 : default 1, recommended 2 or 4 for servers
Since 8 : default 4, no recommendations

This parameter provides the slow-start bug discovered in BSD and Windows
TCP/IP implementations for Solaris. More information on the topic can be
found on the servers of
TARGET="external" CLASS="external"> SUN and in <A
HREF="#TCPIPI3">Stevens [6]. To summarize the effect, a server starts
sending two PDUs at once without waiting for an ACK due to
wrong ACK counts. The ACK from connection
initiation being counted as data ACK - compare with <A
HREF="#figure1-2">figure 2. Network congestion avoidance algorithms are
being undermined. The slow start algorithm does not allow the buggy
behavior, compare with
TARGET="external" CLASS="external">RFC 2001.

Setting the parameter to 2 allows a Solaris machine to behave like it
has the slow start bug, too. Well, IETF is said to make amends to the slow
start algorithm, and the bug is now actively turned into a feature.
TARGET="external" CLASS="external">SUN also warns :

It’s still conceivable, although rare, that on a configuration that
supports many clients on very slow-links, the change might induce more
network congestions. Therefore the change of
tcp_slow_start_initial should be made with caution.


Future Solaris releases are likely to default to 2.

You can also gain performance, if many of your clients are running old
BSD or derived TCP/IP stacks (like MS). I expect new BSD OS releases not to
figure this bug, but then I am not familiar with the BSD OS family. A
reader of this page told me about cutting the latency of his server in
half, just by using the value of 2.

If you want to know more about this feature and its behavior, you can
have a look at some experiments I have
conducted concerning that particular feature. The summary is that I agree
with the reader : A BSDish client like Windows definitely profits from using
a value of 2.

Since 2.6 : default 2, no recommendations
Since 8 : default 4, no recommendations

I reckon that this parameter deals with the slow start for an already
established connection which was idle for some time (however the term idle
is defined here).

default 3, no recommendations

Something to do with the number of duplicates ACKs. If we
do fast retransmit and fast recovery algorithms, this many
ACKs must be retransmitted until we assume that a segment has
really been lost. A simple reordering of segments usually causes no more
than two duplicate ACKs.

There are a couple of parameters which require some elementary
familiarity with
TARGET="external" CLASS="external">RFC 2001, which covers TCP Slow
Start, Congestion Avoidance, Fast Retransmit, and Fast Recovery Algorithms,
as well as ssthresh and cwnd.

default 0, BSD 16, recommended : (see text)
Since 8 : 20, no recommendations

This parameter controls when things like rtt_sa (the smoothed
RTT), rtt_sd (the smoothed mean deviation), and ssthresh
(the slow start threshold) are cached in the routing table. By default,
Solaris does not cache any of the parameters. It is claimed that you can
set it to a value you like, but to be the same as BSD, use 16.

The value to this parameter is the number of RTT samples that had to be
sampled, so that an accurate enough value can be stored in the routing
table. If you chose to use this feature, use a value of 16 or above. Using
16 allows the smoothed RTT filter to converge within 5 % of the correct
value, compare Stevens [4], chapter 21.9.

default 30000, no recommendatations
Since 8 : the parameter has a new name : ip_ire_arp_interval

The parameters may do more than described here. If a routing table entry
is not directly connected and not being used, the cache for things like
rtt_sa, rtt_sd and ssthresh associated with the
entry will be flushed after 30 seconds. The parameter
tcp_rtt_updates must be greater than zero to enable the

I could imagine that external helper programs invoked by <A
HREF="" CLASS="external" TARGET="external">MRTG on
a regular basis connecting to a far-away host might benefit from increasing
this value slightly above the invocation interval.

4. path MTU discovery

Whenever a connection is about to be established, the three-way
handshake open negotiation, the segment size used will be set to the
minimum of (a) the smallest MTU of an outgoing interface, and (b) from MSS
announced by the peer. If the remote peer does not announce a MSS, usually
the value 536 will be assumed. If path MTU discovery is active, all
outgoing PDUs have the IP option DF (don’t fragment) set.

If the ICMP error message fragmentation needed is received, a
router on the way to the destination needed to fragment the PDU, but was
not allowed to do so. Therefore the router discarded the PDU and did send
back the ICMP error. Newer router implementations enclose the needed MSS in
the error message. If the needed MSS is not included, the correct MSS must
be determined by trial and error algorithm.

Due to the internet being a packet switching network, the route a PDU
travels along a TCP virtual circuit may change with time. For this reason
TARGET="external" CLASS="external">RFC 1191 recommends to rediscover
the path MTU of an active connection after 10 minutes. Improvements of the
route can only be noticed by repeated rediscoveries. Unfortunately, Solaris
aggressively tries to rediscover the path MTU every 30 seconds. While this
is o.k. for LAN environments, it is a grossly impolite behavior in WANs.
Since routes may not change that often, aggressive repetitions of path MTU
discoveries leads to unnecessary consumption of channel capacity and
elongated service times.

Path MTU discovery is a far reaching and controversial topic
when discussing it with local ISPs. Still, pMTU discovery is at the
foundation of IPv6. The
CLASS="external">PSC tuning page argues pro path MTU discovery,
especially if you maintain a high-speed or long-delay (e.g. satellite)

The recommendation I can give you is not to use the
defaults of Solaris < 2.5. Please use path MTU discovery, but tune your
system RFC conformant. You may alternatively want to switch off the path
MTU discovery all together, though there are few situations where this is

I was made aware of the fact that in certain circumstances bridges
connecting data link layers of differing MTU sizes defeat pMTU discovery. I
have to put some more investigation into this matter. If a frame with
maximum MTU size is to be transported into the network with the smaller MTU
size, it is truncated silently. A bridge does not know anything about the
upper protocol levels : A bridge neither fragments IP nor sends an ICMP

There may be work-arounds, and the tcp_mss_def is one
of them. Setting all interfaces to the minimum shared MTU might help, at
the cost of losing performance on the larger MTU network. Using what <A
TARGET="external" CLASS="external">RFC 1122 calls an IP
is a possible, yet expensive solution.

default 30000, recommended 600000
Since 2.5 600000, no recommendations

This timer determines the interval Solaris rediscovers the path MTU. An
extremely large value will only evaluate the path MTU once at connection

default 1, recommended 1

This parameter switches path MTU discovery on or off. If you enter a 0
here, Solaris will never try to set the DF bit in the IP option - unless
your application explicitly requests it.

default 0, recommended 0

This is a debug switch ! When activated, this
switch will have the IP or TCP layer ignore all ICMP error messages
fragmentation needed. By this, you will achieve the opposite of
what you intended.

default 536, recommended >= 536
Since 8 : split into tcp_mss_def_ipv4 and tcp_mss_def_ipv6

This parameter determines the default MSS (maximum segment
) for non-local destination. For path MTU discovery to work
effectively, this value can be set to the MTU of the most-used outgoing
interface descreased by 20 byte IP header and 20 byte TCP header - if and
only if the value is bigger than 536.

Since 8 : default 536
Since 8 : default 1460

Solaris 8 supports IPv6. Since IPv6 uses different defaults for the
maximum segment size, one has to distinguish between IPv4 and IPv6. The
default for IPv6 is close to what is said for

default 1, see text, (88 in Linux 2.4 and Win2k)
Since 8 with patch 108528-14 or above : 108

This parameter defines the minimum for the maximum segment size. While I
still ponder the implications of increasing this parameter, some people
tell me that a minimum of 108, especially in an NFS environment, is
favorable. It might also have security implications on the TCP MSS
handshake during connection initiation : A malicious host can announce a MSS
that is below any sensible value, and this parameter might protect
your host by enforcing a sensible minimum.

Unfortunately, currently I don’t have a host to test this.

5. Further advice, hints and remarks

This section covers a variety of topics, starting with various TCP
timers which do not relate to previously mentioned issues. The next
subsection throws a quick glance at some erratic behavior. The final
section looks at a variety of parameters which deal with the reservation of

Additionally, I strongly suggest the use of a file <A
HREF="">/etc/init.d/nettune (always called
first script) which changes the tunable parameters.
/etc/rcS.d/S31nettune is a hardlink to this file. The script
will be executed during bootup when the system is in single user
. A killscript is not necessary. The section about <A
HREF="#scripts">startup scripts below reiterates this topic in greater

5.1 Common TCP timers

The current subsection covers three important TCP timers. First I will
have a look at the keepalive timer. The timer is rather controversial, and
some Solari implement them incorrectly. The next parameter limits the
twice maximum segment lifetime (2MSL) value, which is connected to
the time a socket spends in the TCP state TIME_WAIT. The final
entry looks at the time spend in the TCP state FIN_WAIT_2.

default 7200000, minimum 10000, recommended 10000 <= x <= oo

This value is one of the most controversial ones when talking with other
people about appropriate values. The interval specified with this key must
expire before a keep-alive probe can be sent. Keep-alive probes
are described in the
TARGET="external" CLASS="external">host requirements RFC 1122 : If a
host chooses to implement keep-alive probes, it
must enable the application to switch them on or off for a
connection, and keep-alive probes must be switched off by

Keep-alives can terminate a perfectly good connection (as far
as TCP/IP is concerned), cost your money and use up transmission capacity
(commonly called bandwidth, which is, actually, something completely
different). Determining whether a peer is alive should be a task of the
application and thus kept on the application layer. Only if you run into
the danger of keeping a server in the ESTABLISHED state
forever, and thus using up precious server resources, you should switch on
keep-alive probes.

Example for a webserver response

Figure 3 : A typical handshake during a transaction.

Figure 3 shows the typical handshake during a HTTP connection. It is of
no importance for the argumentation if the server is threaded, preforked or
just plain forked. Webservers work transaction oriented as is shown in the
following simplified description - the numbers do not
to the figure :

  1. The client (browser) initiates a connection (active open).
  2. The client forwards its query (request).
  3. The server (daemon) answers (response).
  4. The server terminates the connection (active close).

Common implementations need to exchange
9..10 TCP segments per HTTP
. The keep-alive option as a HTTP/1.0
protocol and extensions can be regarded as a hack. Persistent
connections are a different matter, and not shown here. Most people still
use HTTP/1.0, especially the Squid users.

The keep-alive timer becomes significant for webservers, if in
step 1 the client crashed or terminates without the server knowing about
it. This condition can be forced sometimes by quickly pressing the stop
button of netscape or the Logo of Mosaic. Thus the keep-alive
probes do make sense for webservers. HTTP Proxies look like a server to the
browser, but look like a client to the server they are querying. Due to
their server like interface, the conditions for webservers are true for
proxies, as well.

With an implementation of keep-alive probes working
, a very small value can make sense when trying to
improve webservers. In this case you have to make sure that the probes stop
after a finite time, if a peer does not answer. Solari <= 2.5
have a bug
and send keep-alive probes forever. They seem to want
to elicit some response, like a RST or some ICMP error message
from an intermediate router, but never counted on the destination simply
being down. Is this fixed with 2.5.1 ? Is there a patch available against
this misbehavior ? I don’t know, maybe you can help me.

I am quite sure that this bug is fixed in 2.6 and that it is safe to use
a small value like ten minutes. Squid users should synchronize their cache
configuration accordingly. There are some Squid timeouts dealing with an
idle connection.

default 240000 (according to RFC 1122, 2MSL), recommended 60000, possibly lower
Since 7 : obsoleted parameter, use tcp_time_wait_interval instead
Since 8 : no more access, use tcp_time_wait_interval

Even though the parameter key contains "close_wait" in its name, the
value specifies the TIME_WAIT interval ! In order to fix
this kind of confusion, starting with Solaris 7, the parameter
tcp_close_wait_interval was renamed to the correct name <A
The old key tcp_close_wait_interval still exists for
backward compatibility reasons. User of Solari below 7 must use
the old name tcp_close_wait_interval. Still, refer to
for an in-depth explaination.

Since 7 : default 240000 (2MSL according to RFC 1122), recommended 60000, possibly lower

As Stevens repeatedly states in his books, the TIME_WAIT
state is your friend. You should not desperately try to avoid it, rather
try to understand it. The maximum segment lifetime(MSL) is the
maximum interval a TCP segment may live in the net. Thus waiting twice this
interval ensures that there are no leftover segments coming to haunt you.
This is what the 2MSL is about. Afterwards it is safe to reuse the socket

The parameter specifies the 2MSL according to the four minute limit
specified in
TARGET="external" CLASS="external">RFC 1122. With the knowledge about
current network topologies and the strategies to reserve ephemeral ports
you should consider a shorter interval. The shorter the interval, the
faster precious resources like ephemeral ports are available again.

A toplevel search engine implementor recommends a value of 1000
millisecond to its customers. Personally I believe this is too low for
regular server. A loaded search engine is a different matter alltogether,
but now you see where some people start tweaking their systems. I rather
tend to use a multiple of the
interval. The current value of
should also be considered in this case - even though retransmissions are
unconnected to the 2MSL time. A good starting point might be the double RTT
to a very remote system (e.g. Australia for European sites). Alternatively
a German commercial provider of my acquaintance uses 30000, the smallest
interval recommended by BSD.

BSD 675000, default 675000, recommended 67500 (one zero less)

This values seems to describe the (BSD) timer interval which prohibits a
connection to stay in the FIN_WAIT_2 state forever.
FIN_WAIT_2 is reached, if a connection closes actively. The
FIN is acknowledged, but the FIN from the passive
side didn’t arrive yet - and maybe never will.

Usually webservers and proxies actively close connections - as long as
you don’t use persistent connection and even those are closed from time to
time. Apart from that HTTP/1.0 compliant server and proxies close
connections after each transaction. A crashed or misbehaving browser may
cause a server to use up a precious resource for a long time.

You should consider decreasing this interval, if

netstat -f

shows many connections in the state FIN_WAIT_2.
The timer is only used, if the connection is really idle. Mind
that after a TCP half close a simplex data transmission is still available
towards the actively closing end. TCP half closes are not yet supported by
Squid, though many web servers do support them (certain HTTP drafts suggest
an independent use of TCP connections). Nevertheless, as long as the client
sends data after the server actively half closed an established connection
the timer is not active.

Sometimes, a Squid running on Solaris (2.5.1) confuses the system
utterly. A great number of connection to a varying degree are in
CLOSE_WAIT for reasons beyond me. During this phase the proxy
is virtually unreachable for HTTP requests though, obnoxiously, it still
answers ICP requests. Although lowering the value for <A
is only fixing symptoms indirectly, not the cause, it may help overcoming
those periods of erratic behavior faster than the default. The thing needed
would be some means to influence the CLOSE_WAIT interval

5.2 Erratic IPX behavior

I noticed that Solari < 2.6 behave erratically under some conditions,
if the IPX ethernet MTU of 1500 is used. Maybe there is an error in the
frame assembly algorithm. If you limit yourself to the IEEE 802.3 MTU of
1492 byte, the problem does not seem to appear. A sample <A
HREF="">startup script with link in /etc/rc2.d can
be used to change the MTU of ethernet interfaces after their
initialization. Remember to set the MTU for every virtual interface,
too !

Note, with a patched Solaris 2.5.1 or Solaris 2.6, the problem does not
seem to appear. Limiting your MTU to non-standard might introduce problems
with truncated PDUs in certain (admittedly very special) environments. Thus
you may want to refrain from using the above mentioned script (always
called second script in this document).

Since I observed the erratic behavior only in a Solaris 2.5, I believe
it has been fixed with patch 103169-10, or above. The error description
reads "1226653 IP can send packets larger than MTU size to the driver."

5.3 Common IP parameters

The following parameters have little impact on performance, nevertheless I
reckon them worth noting here. Please note that parameters starting with
the ip6 prefix apply to IPv6 while its twin with the
ip applies to IPv4 :

Since 8 : default 1, recommended 0 for pure server hosts or security
default 2, recommended 0 for pure server hosts or security
Since 8 : default 1, recommended 0 for security reasons

If you intend to disable the routing abilities of your host all
together, because you know you don’t need them, you can set this switch to
0. The default value of 2 was only available in older versions of Solaris.
It activates IP forwarding, if two or more real interfaces are up. The
value of 1 in Solari < 8 activates IP forwarding regardless of the
number of interfaces. With the possible exception of MBone routers and
firewalling, you should leave routing to the dedicated routing

Starting with Solaris 8, the parameter set is split. You use
ip_forwarding and ip6_forwarding to
overall switch on forwarding of IPv4 and IPv6 PDU respectively between
interfaces. The interfaces participating in forwarding can be activated
separately, see
if:ip_forwarding. Unless
you host is acting as router, it is still recommended for security reasons
to switch off any forwarding between interfaces.

Since 8 : default 0, maximum 1, recommended 0

Please replace the if part of the parameter name with the
appropriate interface available on your system, e.g. hme0 or
hme0. Look into the available /dev/ip parameters,
if unsure what interfaces are known to the IP stack.

Starting with Solaris 8, a subset of interfaces participating in IP
forwarding can be selected by setting the appropriate parameter to 1. You
also need to set the
ip6_forwarding and
ip_forwarding parameter, if
you want to forward IPv6 or IPv6 respectively.

For security reasons, and in many environments, forwarding is
not recommended.

Since 8 : default 1, recommended 0 for security reasons
default 1, recommended 0 for security reasons

This parameter determines if IP datagrams can be forwarded which have
the source routing option activated. The parameter has little
meaning for performance but is rather of security relevance. Solaris may
forward such datagrams, if the host route option is activated, bypassing
certain security construct - possibly undermining your firewall. Thus you
should disable it always, unless the host functions as a regular router
(and no other services).

If you enabled IPv6 forwarding or
IPv4 forwarding, the
*_forward_src_routed parameters may relate to

default 1, recommended 0 for pure server hosts or security

This switch decides whether datagrams directed to any of your direct
broadcast addresses can be forwarded as link-layer broadcasts. If the
switch is on (default), such datagrams are forwarded. If set to zero, pings
or other broadcasts to the broadcast address(es) of your installed
interface(s) are silently discarded. The switch is recommended for any
host, but can break "expected" behavior.

Since 8 : default 1, recommended 0 for security reasons
default 1, recommended 0 for security reasons

If you don’t want to respond to an ICMP echo request (usually generated
by the ping program) to any of your IPv4 broadcast or IPv6
multicast addresses addresses, set the matching parameter to 0. On one
hand, responding to broadcast pings is rumored to have caused panics, or at
least partial network meltdowns. On the other hand, it is a valid behavior,
and often used to determine the number of alive hosts on a particular
network. If you are dead sure that neither you nor your network admin will
need this feature, you can switch it off by using the value of 0.

If you do not want to respond to any IPv4-broadcast or IPv6-multicast
probes for security reasons, it is recommended to set the matching
parameter to 0.

Since 8 : default 10, min 1, maximum 99999, see text
default 500, recommended : see text

Solaris IP only generates ip_icmp_err_burst ICMP error
messages in any ip_icmp_err_interval, regardless of IPv4
or IPv6. In order to protect from denial of service (DOS) attacks,
the parameters do not need to be changed. Some administrators may need a
higher error generation rate, and thus may want to decrease the interval or
increase the generated message.

In versions of Solaris prior to 8, ip_icmp_err_interval
used to define the minimum time between two consecutive ICMP error
responses - as if in older versions the (by then not existing)
ip_icmp_err_burst parameter had a value of 1. The
generated ICMP responses include the time exceeded message as
evoked by the traceroute command. If your current setting here is
above the RTT of a traceroute probe, usually the second probe you
see will time out.

If you set ip_icmp_err_burst to exactly 0,
traceroute will not give away your host as running Solaris. Also,
you switched of the rate limitation of ICMP messages, and are thus open to
DOS attacks. Of course, there are other ways to determine which TCP/IP
implementation a networked host is running.

Since 8 : default 64, minimum 8, maximum 65520, no recommendations
default 64, minimum 8, maximum 65520, no recommendations

The parameters control the number of bytes returned by any ICMP error
message generated on this Solaris host. The default value 64 is sufficient
for most cases. Some laboratory environments may want to temporarily
increase the value in order to figure out problems with some network

Since 8 : default 1, recommendation 0 for security reasons
default 1, recommendation 0 for security reasons

These parameters control whether the IPv4 or IPv6 part of the IP stack
send ICMP redirect messages. For security reasons, it is recommended to
disable sending out such messages, unless your host is acting as

If you enabled IPv6 forwarding or
IPv4 forwarding, the
*_send_redirects parameters may relate to forwarding.

Since 8 : default 0, recommendation 1 for security reasons
default 0, recommendation 1 for security reasons

This flag control, if your routing table can be updated by ICMP redirect
messages. Unless you run your host to act as router, it is recommended to
disable this feature for security reasons. Otherwise, malicious external hosts may confuse your routing table.

If you enabled IPv6 forwarding or
IPv4 forwarding, the
*_ignore_redirects parameters may relate to forwarding.

default 256, minimum 1, maximum 8192, no recommendations

This parameter limits the number of virtual interfaces you can declare
per physical interface. Especially if you run
CLASS="external">Web Polygraph, you will need to increase the number of
virtual interfaces available on your system.

Since 8 : default 0, recommended : see text
default 0, recommended : see text

According to <A
TARGET="external" CLASS="external">RFC 1122, a host is said to be
multihomed, if it has more than one IP address. Each IP address is assumed
to be a logical interface. Different logical interfaces may map to the same
physical interface. Physical interfaces may be connected to the same or
different networks.

The strong end system model aka strict multihoming
requires a host not to accept datagrams on physical interfaces to which to
logical one is not bound. Outgoing datagrams are restricted to the
interface which corresponds with the source ip address.

The weak end system model aka loose multihoming lets a
host accept any of its ip addresses on any of its interfaces. Outgoing
datagrams may be sent on any interface.

For security reasons, it is recommended to require strict multihoming,
that is, setting the parameter to value 1. In certain circumstances,
though, it may be necessary to disable strict multihoming, e.g. if the host
is connected to a virtual private networks (VPN) or sometimes when
acting as firewall.

For instance, I once maintained a setup, where a pair of related caching
proxies were talking exclusively to each other via a crossover cable on one
interface using private addresses while the other interface was connected
to the public internet. In order to have them actually use the
behind-the-scenes link, I had to manually set routes and disable strict

5.4 TCP and UDP port related parameters

There are some parameters related to the ranges of ports associated with
reserved access and non-privileged access. This section deals with the
majority of useful parameters when selecting different than default port

default 32768, recommended 8192

This value has the same size for UDP and TCP. Solaris allocates
ephemeral ports above 32768. Busy servers or hosts using a large 2MSL,
see tcp_close_wait_interval,
may want to lower this limit to 8192. This yields more precious resources,
especially for proxy servers.

A contra-indication may be servers and services running on well known
ports above 8192. This parameter should be set very early during system
bootup, especially before the portmapper is started.

The CLASS="external" TARGET="external">IANA port numbers document requires
the assigned and/or private ports to start at 49152. For busy servers,
severly limiting their ephemeral port supply in such a manner is not an

default 65535, recommended : see text

This parameter has to be seen in combination with
udp_smallest_anon_port. The traceroute
program tries to reach a random UDP port above 32768 - or rather tries not
to reach such a port - in order to provoke an ICMP error message from the

Paranoid system administrator may want to lower the value for this
reason down to 32767, after the corresponding value for
udp_smallest_anon_port has been lowered. On the other
hand, datagram application protocols should be able to cope with foreign
protocol datagrams.

If an ICP caching proxy or other UDP hyper-active applications are used,
the lowering of this value can not be recommended. The respective TCP
parameter tcp_largest_anon_port does not suffer this

default 65535, no recommendations

The largest anonymous port for TCP should be the largest possible port
number. There is no need to change this parameter.

default 1024, no recommendations
default 1024, no recommendations

Privileged ports can only be bound to by the superuser. The smallest
non-privileged port is the first port that a regular user can have his or
her application to bind to.

write-only action
write-only action
default (depends on active services)

The extra priviledged ports are those priviledged ports outside the
scope of the reserved ports. Reserved port numbers are usually below 1024,
see tcp_smallest_nonpriv_port for TCP and
udp_smallest_nonpriv_port for UDP, and require superuser
privileges in order to bind to. For instance, if NFS is activated, the NFS
server port 2049 is marked as privileged.

You can examine the extra privileged TCP port by looking at the
read-only parameter tcp_extra_priv_ports. If you need to
add an extra privileged port, use the
tcp_extra_priv_ports_add with the port number as argument.
If you need to remove an extra privileged port, use the
tcp_extra_priv_ports_del action with the port number to
remove as parameter. You can only add or remove one port at a time.

# ndd /dev/tcp tcp_extra_priv_ports
# ndd -set /dev/tcp tcp_extra_priv_ports_add 4444 5555
# ndd /dev/tcp tcp_extra_priv_ports
# ndd -set /dev/tcp tcp_extra_priv_ports_del 4444
# ndd /dev/tcp tcp_extra_priv_ports

Analogous procedures apply to UDP extra privileged port.

6. Windows, buffers and watermarks

This section is about windows, buffers and watermarks. It is still work
in progress. The explanations available to me were very confusing (sigh),
though the Stevens [7] helped to clear up a few things.
If you have corrections to this section, please let me know and contribute
to an update of the page. Many readers will thank you !

buffers and fragmentation while descending protocol layers

Figure 4 : buffers and related issues

Here just a short trip through the network layer in order to explain
what happens where. Your application is able to send almost any size of
data to the transport layer. The transport layer is either UDP or TCP. The
socket buffers are implemented on the transport layer. Depending on your
choice of transport protocol, different actions are taken on this

All application data is copied into the socket buffer. If there is insufficient size, the application will be put to sleep. From the socket buffer, TCP will create segments. No chunk exceeds the MSS.

Only when the data was acknowledged from the peer instance, the data can
be removed from the socket buffer ! For slow connections or a slowly
working peer, this implies a very long time some data uses up the

The socket buffer size of UDP is simply the maximum size of datagram UDP is able to transmit. Larger datagrams ought to elicit the EMSGSIZE error response from the socket layer. With UDP implementing an unreliable service, there is no need to keep the datagram in the socket buffer.

Please assume that there is not really a socket buffer for sending UDP.
This really depends on the operating systems, but many systems copy the
user data to some kernel storage area, whereas others try to eliminate all
copy operations for the sake of performance.

Please note that for the reverse direction, that is receiving datagrams,
UDP does indeed employ real buffering.

The IP layer needs to fragment chunks which are too large. Among the
reasons TCP prechunks its segments is the need to avoid fragmentation. IP
searches the routing tables for the appropriate interface in order to
determine the fragment size and interface.

If the output queue of the datalink layer interface is full, the
datagram will be discarded and an error will be returned to IP and back to
the transport layer. If the transport protocol was TCP, TCP will try to
resend the segment at a later time. UDP should return the ENOBUFS
error, but some implementations don’t.

To determine the MTU sizes, use the ifconfig -a command.
The MTUs are needed for some calculation to be done later in this section.
With IPv4 you can determine the MSS from the interface MTU by subtracting
20 Bytes for the TCP header and 20 Bytes for the IP header. Keep this in
mind, as the calculation will be repeatedly necessary in the text following

$ ifconfig -a
lo0 : flags=849<UP,LOOPBACK,RUNNING,MULTICAST> mtu 8232
        inet netmask ff000000
        inet netmask ffffff80 broadcast
ci0 : flags=843<UP,BROADCAST,RUNNING,MULTICAST> mtu 9180
        inet netmask ffffff00 broadcast
        ether xx:xx:xx:xx:xx:xx
fa0 : flags=842<BROADCAST,RUNNING,MULTICAST> mtu 9188
        inet netmask 0
        ether xx:xx:xx:xx:xx:xx
el0 : flags=843<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
        inet netmask ffffff00 broadcast
        ether xx:xx:xx:xx:xx:xx

I removed the uninteresting things. hme0 is the regular 100
Mbps ethernet interface. The 10 Mbps ethernet interface is called
le0. The el0 interface is an ATM LAN emulation (lane)
interface. ci0 is the ATM classical IP (clip) interface.
fa0 is the interface that supports Fore’s proprietary
implementation of native ATM. Fore is the vendor of the installed ATM card.
AFAIK you can use this interface to build PVCs or, if you are also using
Fore switches, SVCs. You see an unconfigured interface there.

The buffer sizes for sending and receiving TCP segment and for UDP
datagrams can be tuned with Solaris. With the help of the
netstat command you can obtain an output similar but unlike
the following one. The data was obtained on a server which runs a Squid
with five dnsserver children. Since the interprocess communication is
accomplished via localhost sockets, you see both, the client side and the
server side of each dnsserver child socket.

$ netstat -f inet

Local Address Remote Address Swind Send-Q Rwind Recv-Q State
-------------------- -------------------- ----- ------ ----- ------ -------
blau-clip.ssh challenger-clip.1023 57344 19 63980 0 ESTABLISHED
localhost.38437 localhost.38436 57344 0 57344 0 ESTABLISHED
localhost.38436 localhost.38437 57344 0 57344 0 ESTABLISHED
localhost.38439 localhost.38438 57344 0 57344 0 ESTABLISHED
localhost.38438 localhost.38439 57344 0 57344 0 ESTABLISHED
localhost.38441 localhost.38440 57344 0 57344 0 ESTABLISHED
localhost.38440 localhost.38441 57344 0 57344 0 ESTABLISHED
localhost.38443 localhost.38442 57344 0 57344 0 ESTABLISHED
localhost.38442 localhost.38443 57344 0 57344 0 ESTABLISHED
localhost.38445 localhost.38444 57344 0 57344 0 ESTABLISHED
localhost.38444 localhost.38445 57344 0 57344 0 ESTABLISHED

The columns titled with Swind and Rwind
contain values for the size of the respective send- and reception
windows, based on the free space available in the receive
buffer at each peer. The Swind column
contains the offered window size as reported by the remote
peer. The Rwind column displays the advertised
size being transmitted to the remote peer.

An application can change the size of the the socket layer
buffers with calls to setsockopt with the
parameter SO_SNDBUF or SO_RCVBUF. Windows and
buffers are not interchangeable. Just remember : The buffers have a fixed
size - unless you use setsockopt to change. Windows on the
other hand depend on the free space available in the input buffer. The
minimum and maximum requirements for buffer sizes are tunable

introduction into buffers and windows

Figure 5a : Introduction into buffers and windows.

Figure 5a shows the connection between two hosts A and B. The
connection itself can be visualized as a pipeline between the two peers.
— >

buffers, watermarks and windows

Figure 5 : buffers, watermarks and window sizes.

Figure 5 shows the relation of the different buffers, windows and
watermarks. I decided to let the send buffer grow from the maximum towards
zero, which is just a way of showing things, and does probably not
represent the real implementation. I left out the different socket options
as the picture is confusing enough.

  • receive high watermark *_recv_hiwat

    Effectively the size of the receive buffer. The receive high watermark
    tunes the transport layer socket buffer sizes on a kernel wide basis. The
    socket option SO_RCVBUF allows the dynamic change of the
    receive buffer size within the application on a per socket basis.

  • minimum number of maximum sized segments tcp_recv_hiwat_minmss (TCP only)

    The number of maximum sized segments which have to fit into a receive
    buffer. This is a k.o.-criterion for sizing buffers. It is not possible
    to set a receive buffer size which is unable to have at least this many
    segments fit into it.

  • receive low watermark not directly tunable (TCP only)

    minimum amount of data in the input buffer to have a call to
    select or poll return the socket as readable.
    read, recv,
    recvfrom and recvmsg. —> The socket option
    SO_RCVLOWAT allows the dynamic change of the receive low
    watermark on a per socket basis. With UDP, the socket is reported readable
    as soon as there is a complete datagram in the receive buffer.

  • transmit high watermark *_xmit_hiwat

    Effectively the size of the send buffer. The send buffer high watermark
    tunes the transport layer socket buffer size on a kernel wide basis. The
    socket buffer can also be changed on a per-socket basis by using the
    SO_SNDBUF socket option within an application. Mind that for
    UDP the size of the output buffer represents the maximum datagram size.

  • transmit low watermark *_xmit_lowat

    The amount of free space to be available in the send buffer to have
    select and poll report the socket writable. The
    socket option SO_SNDLOWAT allows a dynamic change of this size
    on a per-socket basis.

  • offered window (TCP only)

    The offered window is the amount of free space available in the input
    buffer of the peer (how much we are allowed to send), relative to the
    acknowledged data. The window size is shown in the Swind
    column in the netstat output. From the offered window, the
    usable window is calculated, that is the amount of data which can be send
    as soon as possible. TCP never sends more than the minimum of the current
    congestion window and the offered window.

     to_send := MIN( cwnd, offered window )
  • advertised window (TCP only)

    The advertised window is the free space available in the local input
    buffer advertised to the remote peer (how much we are willing to
    receive). The advertised window is shown in the Rwind column
    in the netstat output.

  • cwnd (TCP only)

    The congestion window cwnd is used in TCP bulk data transfer
    with the congestion avoidance and slow start algorithms.
    The cwnd is initialized to 1 segment, and will grow with received
    acknowledgments. It will not exceed the maximum congestion window size. TCP
    will not send more than the minimum of the offered window and the current
    value of cwnd.

  • congestion window maximum size tcp_cwnd_max (TCP only)

    Maximum size the congestion window may grow to. Usually, the maximum
    size is larger than the buffer size available, which is not a

Squid users should note the following behavior seen with Solaris 2.6.
The default socket buffer sizes which are detected during configuration
phase are representative of the values for tcp_recv_hiwat,
udp_recv_hiwat, tcp_xmit_hiwat and
udp_xmit_hiwat. Also note that enabling the hit
feature still limits hit object size to 16384 byte, regardless
of what your system is able to achieve.

Output from Squid 1.1.19 configuration script on a Solaris 2.6 host
with the previously mentioned parameters all set to 64000. Please mind that
these parameters do not constitute optimal sizes in most environments :

checking Default UDP send buffer size... 64000
checking Default UDP receive buffer size... 64000
checking Default TCP send buffer size... 64000
checking Default TCP receive buffer size... 64000

Buffers and windows are very important if you link via satellite. Due to
the daterate possible but the extreme high round-trip delays of a satellite
link, you will need very large TCP windows and possibly the TCP
timestamp option. Only
TARGET="external" CLASS="external">RFC 1323 conformant systems will
achieve these ends. In other words, get a Solaris 2.6. For 2.5 systems, RFC
1323 compliance can be purchased as a Sun Consulting Special.

Window sizes are important for maximum throughput calculations, too. As
Stevens [4] shows, you cannot go faster than the
window size offered by your peer, divided by the round-trip time
. The lower your RTT, the faster you can transmit. The larger
your window, the faster you can transmit. If you intend to employ maximum
window sizes, you might want to give
another look.

The network research laboratory of the German research network did
measurements on satellite links. The RTT for a 10 Mbps link (if I remember
correctly) was about 500 ms. A regular system was able to transmit 600 kbps
whereas a RFC 1323 conformant system was able to transmit about 7 Mbps.
Only bulk data transfer will do that for you.

 (1)   10 Mbps * 0.5 s = 5 Mbit = 625 KB
 (2)   512 KB / 0.5 s = 1 MBps = 8 Mbps
 (3)   64 KB / 0.5 s = 128 KBps = 1 Mbps

The bandwidth-delay-product can be used to estimate the initial
value when tweaking buffer sizes. The buffers then represent the capacity
of the link. If we apply the bandwidth-delay-product calculations to the
satellite link above, we get the following results : Equation 1 estimates
the buffer sizes necessary to fully fill the 10 Mbps link. Equation 2
assumes that the buffer sizes were set to 512 KB, which would yield 8 Mbps.
Slight deviation in the experiment may have been caused by retransmissions.
Finally, equation 3 estimates the maximum datarate we can use on the
satellite link, if limited to 64 KB buffers, e.g. Solaris <= 2.5.1. The
1 Mbps constitute an upper limit, as can be seen by the measured 600

Application developers, especially those for web-based applications,
should be aware of the implications of persistent connections. As long as
HTTP/1.0 connection-per-transaction style is used by your application,
depending on the size of the transaction data, you will not get any decent
transmissions via satellite. For instance, the average web object is about
13 KByte in size, thus transmitting such an object on a
connection-per-transaction basis will never get past TCP slow start. While
this may or may not be a big deal with terrestrial links, but you will
never be able to fill a satellite pipe to a satisfactorily degree. Doing
things in parallel might help. Only when reaching TCP congestion avoidance
you will see any filling of the pipe. You might also want to check out the
unrelated HREF="#tcp_slow_start_initial">tcp_slow_start_initial

A word of caution seems to be in order, when tuning the
Solaris’ TCP high watermarks : Starting with Solaris 2.6, setting
tcp_xmit_hiwat or tcp_recv_hiwat near
65535 may have the side effect of turning on the wscale option, because
these values are rounded up to multiples of MTU for each
connection. In some cases you may not want to accidentally use wscale,
because it may break something else in your setup such as IP-Filter. To
avoid accidentally using wscale, you need to make sure that
tcp_xmit_hiwat and tcp_recv_hiwat are
both at least 1 MTU below 65535. For ethernet interfaces, 64000 is a good

default 32768, since 2.? 65535, recommended 65535 for Solaris <= 2.5.1
since 2.6 : 262144 (finally !), no recommendations
Since 8 : 1048576, no recommendations

This parameter describes the maximum size the congestion window
can be opened. The congestion window is opened as large as
possible with any Solaris up to 2.5.1. A change to this value is only
necessary for older Solaris systems, which defaulted to 32768. The Solaris
2.6 default looks reasonable, but you might need to increase this further
for satellite or long, fast links.

Though window sizes beyond 64k are possible, mind that the window scale
is only announced during connection creation and your maximum
windows size is 1 GByte (1,073,725,440 Byte). Also, the window scale
is only employed during the connection, if both sides
support it.

default 8192, recommended 16384 (see text), Cockroft 32768, maximum 65535
Solaris 2.6 LFN bulk data transfer 131071 or above (see text)
Since 8 : 24576 (see text)

This parameter determines the maximum size of the initial TCP reception
buffer. The specified value will be rounded up to the next multiple of the
MSS. From the free space within the buffer the advertised window
is determined. That is, the size of the reception window
advertised to the remote peer. Squid users will be interested in this value
with regards to the socket buffer size the Squid auto configuration program

The previous table shows an Rwind value of 63980 = 7 *
9140. 9140 is the MSS of the ATM classical IP interface (clip) in host
blau. The interface itself uses a MTU of 9180. For the standard
builtin 10 Mbps or 100 Mbps IPX ethernet, you get a MTU of 1500 on the
outgoing interface, which yields an MSS of 1460. The value of 57344 in the
next Rwind line points to the lo0 (loopback)
interface, MTU 8232, MSS 8192 and 57344 = 7 * 8192.

Starting with Solaris 2.6 values above 65535 are possible, see the
window scale option from
TARGET="external" CLASS="external">RFC 1323. might need
to reboot your workstation in order to have the changes take effect, but
then, you might not.—> Only if the peer host also implements
TARGET="external" CLASS="external">RFC 1323, you will benefit from
buffer sizes above 65535. If one host does not implement the window
scale option
, the window is still limited to 64K. The option is only
activated, if buffer sizes above 64K are used.

For HTTP, I don’t see the need to increase the buffer above 64k. Imagine
servicing 1024 simultaneous connections. If both the TCP high watermarks of
your system are tuned to 64k and your application uses the system’s
defaults, you would need 128M just for your TCP buffers !

Squid’s configuration option tcp_recv_bufsize lets you
select a TCP receive buffer size, but if set to 0 (default) the kernel
value will be taken, which is configurable with the
tcp_recv_hiwat parameter. A buffer size of 16K is large
enough to cover over 70 % of all received webobjects on our caches.

Refer to tcp_host_param for a way to
configure special defaults for a set of hosts and networks.

default 4, no recommendations

This parameter influences the minimum size of the input buffer. The
reception buffer is at least as large as this value multiplied by the MSS.
The real value is the maximum of tcp_recv_hiwat round up
to the next MSS and tcp_recv_hiwat_minmss multiplied by
the MSS, in other words, something akin to :

  hiwat_tmp = ceil( tcp_recv_hiwat / MSS )
  real_size := MAX( hiwat_tmp, tcp_recv_hiwat_minmss ) * MSS

That way, however bad you misconfigure the buffers, there is a
guaranteed space for tcp_recv_hiwat_minmss full segments
in your input buffer.

default 8192, recommended 16384 (see text), maximum 65535

The highwater mark for the UDP reception buffer size. This value may be
of interest for Squid proxies which use ICP extensively. Please read the
explanations for tcp_recv_hiwat. Squid users will want at
least 16384, especially if you are planning on using the (obsolete) hit
feature of Squid. A larger value lets your computer receive
more seemingly simultaneous ICP PDUs.

If you see many dead parent detections in your cache.log
file without cause, you might want to increase the receive buffer. In most
environments an increase to 64000 will have a negligible effect on the
memory consumption, as most application, including Squid, use only one or
very few UDP sockets, and often in an iterative way.

Remember if you don’t set your socket buffer explicitly with a call to
setsockopt(), your default reception buffer will have about
the mentioned size. Arriving Datagrams of a larger size might be truncated
or completely rejected. Some systems don’t even notify your receiving

default 8192, recommended 16384 (see text), Cockroft 32768, maximum 65535
Solaris 2.6 LFN bulk data transfer 131071 or above (see text)
Since 8 : 16384 (see text)

This parameter influence a heuristic which determines the size of the
initial send window. The actual value will be rounded up to the next
multiple of the MSS, e.g. 8760 = 6 * 1460. Also do read the section on

The table further to the top shows a Swind of 57344 = 7 *
8192. For the standard builtin 10 Mbps or 100 Mbps IPX ethernet, you get an
MTU of 1500 on the outgoing interface, which yields a MSS of 1460.

Starting with Solaris 2.6 values above 65535 are possible, see the
window scale option from
TARGET="external" CLASS="external">RFC 1323. Only if the peer host also
implements TARGET="external" CLASS="external">RFC 1323, you will benefit from
buffer sizes above 65535. If one host does not implement the window
scale option
, the window is still limited to 64K.

I don’t see the need to increase the buffer above 32K for HTTP
applications. Imagine servicing 1024 simultaneous connections. If both TCP
high watermarks of your system are tuned to 32K, you would need 64M just
for your TCP buffers. Mind that the send buffer has to keep a copy of all
unacknowledged segments. Therefore it is affordable to give it a greater
size than the receive buffer. Again, 16K covers over 70 % of all
transferred web objects on our caches, and 32K should cover 90 %.

Refer to tcp_host_param for a way
to configure special defaults for a set of hosts and networks.

default 8192, recommended 16384, maximum 65535

This refers to the highwater mark for send buffers. May be of interest
for proxies using ICP extensively. Please refer to the explanations for
tcp_xmit_hiwat. Squid users will want 16384, especially if
you are planning on using the hit object feature of Squid.
Selecting a higher value for the transmission is not feasible.

Please remember that there exists no real send buffer for UDP on the
socket layer. Thus, trying to send a larger amount of data than
udp_xmit_hiwat will truncate the excess, unless the
SO_SNDBUF socket option was used to extend the allowed

default 2048, no recommendations
Since 8 : 4096, no recommendations

The current parameter refers to the amount of data which must be
available in the TCP socket sendbuffer until select or
poll return writable for the connected file

Usually there is no need to tune this parameter. Applications can use
the socket option SO_SNDLOWAT to change this parameter on a
process local basis.

default 1024, no recommendations

The current parameter refers to the amount of data which must be
available until select or poll return
writable for the connected file descriptor. Since UDP does not
need to keep datagrams and thus needs no outgoing socket buffer, the socket
will always be writable as long as the socket sendbuffer size value is
greater than the low watermark. Thus it does not really make much sense to
wait for a datagram socket to become writable unless you constantly adjust
the sendbuffer size.

Usually there is no need to tune this parameter, especially not on a
system-wide basis.

default 262144, minimum 65536, no immediate recommendations
since 2.6 1048576, minimum 65536, no immediate recommendations
default 262144 (since 2.5), minimum 65536, no immediate recommendations

Finally found the explanations in the SUN
TCP/IP Admin Guide
. The current parameter refers to the maximum buffer
size an application is allowed to specify with the SO_SNDBUF and
SO_RCVBUF socket option calls. Attempts to use larger buffers will
fail with a EINVAL return code from the socket option call. SUN
recommends to use only the largest buffer necessary for any of your
applications - that is, the supremum function, not the sum. Specifying a
greater size does not seem to have much impact, if all your applications
are well-behaving. If not, they may consume quite an amount of kernel
memory, thus this parameter is also a kind of safety line.

A few odd remarks at this point, concerning the recommendations given
for the transmission buffer sizes. I decreased the recommendations of
Adrian Cockroft in favor of a more conservative memory consumption. Also,
with an average HTTP object size of 13 KByte, you can expect to fit over 50 %
of all objects into the transmission buffer. On the other hand, larger
objects which are to be transmitted by a cache or webserver may suffer in
certain circumstances. Furthermore, I should recommend a generic
transmission buffer size which is double the reception buffer size. This
recommendation bases on the fact that unacknowledged segments occupy the
send buffer until they are acknowledged.

Here some more material from
TARGET="external" CLASS="external">the SUN TCP/IP Admin Guide, kindly
pointed out by Mr. Murphy. Refer to the SUN guide for a more detailed
description of these parameters, and their respective applicability. Most
noteworthy is tcp_host_param, which allows per
host/network defaults regarding RFC 1323 TCP options.

Since 2.6 : default 0

If the parameter is set (non-zero), then the TCP window scale
will always be negotiated during connection initiation.
Otherwise, the scale option will only be used if the buffer size is above
64K. To take effect, both hosts have to support RFC 1323.

Since 2.6 : default 0

If the parameter is set (non-zero), then the TCP timestamp
will always be negotiated during connection initiation. The
scale option will always be used if the remote system sent a timestamp
option during connection initiation. To use the timestamp, both hosts have
to support RFC 1323.

Since 2.6 : default 0

If the option is set (non-zero), the TCP timestamp option will
be used in addition to the TCP window scale option, if the user
has requested a buffer size above 64K, that is, if window scaling is

Since 8 : default is empty (this is a tabular value)

Refer to tcp_host_param for
instructions on handling the table. The same rules apply except
that the ipv6 table is meant for IPv6, of course.

Since 2.6 : default is empty (this is a tabular value)

This parameter represents a table which contains special TCP options to
be used with a remote host or network. The table is configurable with the
help of ndd, and empty by default. The following piece of code
displays the contents of the table at various points, sets an entry and
removes it again :

# ndd /dev/tcp tcp_host_param
Hash HSP      Address         Subnet Mask     Send       Receive    TStamp

# ndd -set /dev/tcp tcp_host_param ’ sendspace 262144 recvspace 262144’
# ndd /dev/tcp tcp_host_param
Hash HSP Address Subnet Mask Send Receive TStamp
125 62bae844 0000262144 0000262144 0

# ndd -set /dev/tcp tcp_host_param ’ delete’
# ndd /dev/tcp tcp_host_param
Hash HSP Address Subnet Mask Send Receive TStamp

Use the mask command to supply a netmask for a network, and the
timestamp command to supply the timestamp option. Fill this table
from a startup script, if you want large default windows only for certain
links (e.g. which go via satellite), but small windows for anything else.
The content of this table takes precedence over the generic global values,
if certain criteria are met :

  • For the configured host or network, sendspace takes precedence over either tcp_xmit_hiwat or a user supplied value, iff the table value is larger.
  • For the configured host or network, recvspace takes precedence over either tcp_recv_hiwat or a user supplied value, iff the table value is larger.
  • A value of 1 for timestamp always tries to negotiate the TCP timestamp option for the configured host or network. However, a value of zero for timestamp may still negotiate the timestamp option, depending on the settings of tcp_tstamp_always and tcp_tstamp_if_wscale.

7. Tuning your system

This section evolved around tuning items, which were not directly
related to the TCP/IP stack, but nevertheless play an important role in the
tuning of any system. Refer to SUN’s HREF="">Solaris
Tunable Reference Manual
for more in-depth information.

7.1 Things to watch

Did you reserve enough swap space ? You should have at least
as much swap as you have main memory. If you have little main
memory, even double your swap. Do not be fooled by the result
of the vmstat command - read the manpage and realize that the
small value for free memory shown there is (usually) correct.

With Solaris there seems to exist a difference between virtually
generated processes and real processes. The latter is extremely dependent
on the amount of virtual memory. To test the amount of both kinds of
processes, try a small program of mine. Do start it
at the console, without X and not as privileged user. The first
value is the hard limit of processes, and the second value the amount of
processes you can really create given your virtual memory configuration.
Tweaking your ulimit values may or may not help.

7.2 General entries in the file /etc/system

The file /etc/system contains various very important
resource configurable parameters for your system. You use these tunings to
give a heavily loaded system more resources of a certain kind.
Unfortunately a reboot is necessary after changing anything.
Though one could schedule reboots after midnight, I advice against it. You
should always check if your changes have the desired effect, and won’t tear
down the system.

Adrian Cockroft severely warns against transporting an
/etc/system from one system onto another, even worse, onto
another hardware platform :

Clean out your /etc/system when you upgrade.

The most frequent changes are limited to the number of file descriptors,
because the socket API uses file descriptors for handling internet
connectivity. You may want to look at the hard limit of
available to you. Proxies like Squid have to count twice to
thrice for each request : open request descriptors and an open file and/or
(depending what squid you are using) an open forwarding request
descriptors. Similar calculations are true for other caches.

You are able to influence the tuning with the reserved word
set. Use a whitespace to separate the key from the keyword.
Use an equals sign to separate the value from its key. There are a few
examples in the comments of the file.

Please, before you start, make a backup copy of your initial
The backup should be located on your
root filesystem. Thus, if some parameters fail, you can always supply the
alternative, original system file on the boot prompt. The following shows
two typically entered parameters :

* these are the defaults of Solaris < 8
set rlim_fd_max=1024
set rlim_fd_cur=64

WARNING ! SUN does not make any guarantees for the correct working
of your system, if you use more file descriptors than 4096. Personally, my
old fvwm window manager did quit working alltogether. In my case, I
compiled it on a Solaris 2.3 or 2.4 system and transferred it always
onwards to a 2.5 system. After re-compiling it on the new OS, it worked to
my satisfaction.

If you experience SEGV core dumps from your select(3c)
system call after increasing your file descriptors above 4096, you have to
recompile the affected programs. Especially the select(3c)
call is known to the Squid users for its bad tempers concerning the maximum
number of file descriptors. SUN remarks to this topic :

The default value for FD_SETSIZE (currently 1024) is larger
than the default limit on the number of open files. In
order to accommodate programs that may use a larger number
of open files with select(), it is possible to increase this
size within a program by providing a larger definition of
FD_SETSIZE before the inclusion of <sys/types.h>.

Note : This does not work as expected ! See text below.

I did test this suggestion by SUN, and a friend of mine tried it with
Squid Caches. The result was a complete success or disaster both times,
depending on your point of view : If you can live with supplying naked women
to your customers instead of bouncing logos of companies, go ahead and try
it. If you really need to access file descriptors above 1024, don’t
use select(), use poll() instead !

poll() is supposed to be faster with Solaris, anyway. A
different source mentions that the redefinition workaround mentioned above
works satisfactorily ; not for me, my personal experiences warn against such
an action.

At the TARGET="external" CLASS="external">pages of VJ are a some tricks which
I incorporated into this paper, too. Personally I am of the opinion that
the VJ pages are not as up to date as they could be.

Many parameters of interest can be determined using the


command. Please keep in mind that many values are in
hexadecimal notation without the 0x prefix. Another very
good program to see your system’s configuration is <A
HREF="" TARGET="external"
CLASS="external">sysinfo, the program. Refer to the manpages how to
invoke this program.

There is also the possibility to use a small helper
kindly supplied by Mr. Kroonma to have a look into some kernel
variables with the help of the absolute debugger (adb). You can
extend the script to suit your own needs, but you should know what you are
doing. Refer to the manual page of the absolute debugger for details of
displaying non-ulong datatype variables. If you don’t know, what adb can do
for you, hands off.

default 64, recommended 64 or 256
Since 8 : default 256, no recommendations

This parameters defines the soft limit of open files you can have. The
currently active soft limit can be determined from a shell with something

ulimit -Sn

Use at your own risk values above 256, especially if you are
running old binaries. A value of 4096 may look harmless enough, but may
still break old binaries.

Another source mentions that using more than 8192 file descriptors is
discouragable. It mentions that you ought to use more processes, if you
need more than 4096 file descriptors. On the other hand, an ISP of my
acquaintance is using 16384 descriptors to his satisfaction.

predicate rlim_fd_cur <= rlim_fd_max
must be fulfilled.

Please note that Squid only cares about the hard limit (next item). With
respect to the standard IO library, you should not raise the soft limit
above 256. Stdio can only use <= 256 FDs. You can either use
or use Solaris 64-bit mode applications which fix the stdio
weakness. RPC prior to 2.6 may break, if more than 1024 FDs are available
to it.

Also note that RPC prior to Solaris 2.6 may break, if more than 1024 FDs
are available to it. Also, setting the soft limit to or above 1024 implies
that your license server queries break (first hand experience - thanks
Jens). Using 256 is really a strong recommendation.

default 1024, recommended >=4096

This parameter defines the hard limit of open files you can have. For a
Squid and most other servers, regardless of TCP or UDP, the number of open
file descriptors per user process is among the most important
The number of file descriptors is one limit on the number of
connections you can have in parallel. You can find out the value of your
hard limit on a shell with something like

ulimit -Hn

You should consider a value of at least 2 *
tcp_conn_req_max and you
should provide at least 2 * rlim_fd_cur. The predicate
rlim_fd_cur <= rlim_fd_max must be

Use at your own risk values above 1024. SUN does not make any
warranty for the workability of your system, if you increase this above
1024. Squid users of busy proxies will have to increase this value, though.
A good starting seems to be 16384 <= x <= 32768. Remember to change
the Makefile for Squid to use poll() instead of
select(). Also remember that each call of
configure will change the Makefile back, if you didn’t change

Any decent application will incorporate code to increase its soft limit
to a possibly higher hard limit. Please note (again) that Squid, as such an
application, only cares about the hard limit.

default 126976 (sun4m and sun4d), 131072 (sun4u), 57,344 (Intel),
1048576 (sd driver with wide-SCSI), 1048576 (SPARC storage array driver), no recommendations

A work-copy of this value is often stored in the mount structure or
driver structure at the time it is attached. If a driver sees IO requests
larger than this parameter, the requests will be broken down into
appropriotely sized chunks. The file system may further fragment the
chunks. A change might be conceivable, if your database server uses raw
devices and issues large requests - mind that many of todays database usage
paradigms result in many small chunked requests and will not speed up by
increasing this value.

If working large chunked IO with UFS, you can additionally increase the
number of cylinder groups and decrease the number of inodes per group (as
there will be a few large files).

default 249 = Megs RAM (Ultra-2/2 CPUs/256 MB), min 8, max 2048, no recommendations

This parameter determines the size of certain kernel data structures
which are initialized at startup. Recent versions of Solaris derive most
table sizes now from the amount of memory available, but there are still
some dependent variables on this parameter, see
max_nprocs, maxuprc,
ufs_ninode, ncsize and
ndquot. There is strong indication that the default for
maxusers itself is being determined from the main memory
in megs. It might also be a function of the available memory and/or

The greater you chose the number for maxusers, the
greater the number of the mentioned resources. The relation in strictly
proportional : A doubling of maxusers will (more or less)
double the other resources.

Adrian Cockroft advises against a setting
of maxusers. The kernel uses a lot of space while
keeping track of the RAM usages within the system, therefore it might
need to be reduced on systems with gigabytes of main memory.
The point to change this parameter is whenever the automagically
determined number of user processes is way too high, e.g. file servers,
database servers, compute servers with few processes, or way too low.

Since 8 : default 30000, minimum 266, maximum 999999, no recommendations

Starting with Solaris 8, you can determine the number of the largest
possible value for a pid_t the system can set. From this
parameter, the kernel variable maxpid will be set
once during startup. maxpid on the other hand cannot
be set via /etc/system.

Since 8 : default 5, mininum 5, maximum MAXINT, no recommendations

This parameter is the mysterious difference between the number of all
processes max_nprocs and the number of user processes
maxuprc, and affects the number of system process table
slots reserved for uid 0, e.g. sched, pageout
and fsflush.

Though a change is not immanently recommended, increasing the number of
root slots to 10 plus number of root processes might be considered, in
order to provide root with a shell at times the system is uncapable of
creating a user-level shell, e.g. run-away user-processes, fork-of-death,

default 10+maxusers*16, minimum 266, maximum MIN(maxpid,65534), no recommendations

This is the systemwide number of processes available, user and
system processes. You should leave sufficient space to the parameter
maxuprc. The value of this parameter is influenced by the
setting of maxusers.

The number is used to compute various further parameters (see below),
including the DNLC cache, the quota structures, System-V semaphore limits,
address translation table resources for sun4m, sun4d and Intel Solaris

default max_nprocs-reserved_procs, minimum 1, maximum=default, no recommendations

This parameter describes the number of processes available to users. The
actual value is determined from max_nprocs which is itself
determined by maxusers. Adjustments to this parameter
should be implemented by changing max_nprocs and/or
reserved_procs instead.

default 48, no recommendations

The parameter defines the maximum number of BSD ttys
(/dev/ptty??) available. A few BSD networking things might
need these devices. If you run into a limit, you may want to increase the
number of available ttys, but usually the size is sufficient.

default 48, min 48, max 3000, no recommendations
Since 8 : remove from /etc/system

Solaris only allocated 48 SYSV pseudo tty devices (slave devices in
/dev/pts/*). On a server with many remote login, or many open
xterm windows you may reach this limit. It is of little interest to
webservers or proxies, but of greater interest for personal

Starting with Solaris 8, the pseudo terminals are allocated dynamically,
see CLASS="external" TARGET="external"> Presetting the
variable to some value disables the dynamic allocation.

default 16384 (with maxusers 249), recommended : don’t set

This parameter specifies the size of the virtual address cache. If a
personal workstation with many open xterms and sufficient tty devices has a
very degraded performance, this parameter might be too small. My
recommendation is to let the system chose the correct value. The current
value is determined by the size of maxusers.

default 4323 = 17*maxusers+90 (with maxusers 249), min 226, max : see below,
Or 2.5.1 : 4323 = max_nprocs+16+maxusers+64, (with max_nprocs 3994 and maxusers 249)
Since 2.6 : 4323 = 4*(max_nprocs+maxusers)+320 (with max_nprocs 3994 and maxusers 249)
no immediate recommendations
default 4323 = 17*maxusers+90 (with maxusers 249), min 226, max : see below,
Or 2.5.1 : 4323 = max_nprocs+16+maxusers+64, (with max_nprocs 3994 and maxusers 249)
Since 2.6 : 4323 = 4*(max_nprocs+maxusers)+320 (with max_nprocs 3994 and maxusers 249)
no immediate recommendations

The first formula is taken from the NFS Server Performance and
Tuning Guide for SUN Hardware
, the second formula is taken from the
System Administration Guide, Volume II and the third from an email
on squid-users. I guess, in the end, after substituting all
variables and interdependencies, they turn out more or less the same.

The ufs_inode parameter specifies the size of an inode
table. The actual value will be determined by the value of
maxusers. A memory-resident inode is used whenever an
operation is performed on an entity in the file system (e.g. files,
directories, FIFOs, devices, Unix sockets, etc.). The inode read from disk
is cached in case it is needed again. ufs_ninode is the
size that the Unix file system attempts to keep the list of idle inodes. As
active inodes become idle, if the number of idle inodes increases above the
limit of the cache, the memory is reclaimed by tossing out idle inodes.

The ncsize parameter specifies the size of the
directory name lookup cache (DNLC). The DNLC caches recently accessed
directory names and their associated vnodes. Since UFS directory entries
are stored in a linear fashion on the disk, locating a file name requires
searching the complete directory for each entry. Also, adding or creating a
file needs to ensure the uniqueness of a name for the directory, also
needing to search the complete directory. Therefore, entire directories are
cached in memory. For instance, a large directory name lookup cache size
significantly helps NFS servers that have a lot of clients. On other
systems the default is adequate. The default value is determined by

Every entry in the directory name lookup cache (DNLC) points to an entry
in the inode cache, so both caches should be sized together. The inode
cache should be at least as big as the DNLC cache. For best performance, it
should be the same size in the Solaris 2.4 through Solaris 8 operating

The upper bound for the inode cache is set by the amount of kernel
memory used for inodes. The largest test value was 34906. Starting with
Solaris 2.5.1, each inode uses 320 byte kernel memory. I was able to set my
inode cache to 54688 on an 80 MB sun4m, and there are reports of an even
larger settings of 128000 entries in the inode cache on a 1 GB machine.

The kernel will decrease the inode cache based on the main memory
available, if too large, but it will not perform any magic
for ridiculous large values. Your application could suffer from inode
starvation, if the value is too large, and the inodes are not sufficiently
recycled. You can check the current settings with the help of the
netstat -k inode_cache command. The example shows a maximum
size of 54688 entries :

$ netstat -k inode_cache
inode_cache :
size 947 maxsize 54688 hits 74 misses 1214 kmem allocs 947 kmem frees 0

Warning : Do not set
ufs_ninode less than ncsize. The
ufs_ninode parameter limits the number of inactive inodes,
rather than the total number of active and inactive inodes. With the
Solaris 2.5.1. to Solaris 8 software environments,
ufs_ninode is automatically adjusted to be at least
ncsize. Tune ncsize to get the hit rate
up and let the system pick the default ufs_ninode.

I have heard from a few people who increase ncsize to
30000 when using the Squid webcache. Imagine, a Squid uses 16 toplevel
directories and 256 second level directories. Thus you’d need over 4096
entries just for the directories. It looks as if webcaches and newsserver
which store data in files generated from a hash need to increase this value
for efficient access.

You can check the performance of your DNLC - its hit rate - with the
help of the vmstat -s command. Please note that Solaris 7
re-implemented the algorithm, and thus doesn’t have the toolong
entry any more :

$ vmstat -s
... 1743348604 total name lookups (cache hits 95%) 32512 toolong

Up to Solaris 7, only names less than 30 characters are cached. Also,
names too long to be cached are reported. A cache miss means that a disk
I/O may be needed to read the directory (though it might still be
in the kernel buffer cache) when traversing the path name components to get
to a file. A hit rate of less than 90 percent requires attention. Since
only short names are cached in Solaris version prior to 7, such a behavior
would call for putting Squid cache disks or News spool disks onto
partitions of their own (always a recommended feature for various reasons),
and, more importantly, use a mount point in the root directory with a short
name, e.g. /disk1. /var/spool/cache just might be short
enough for Squid.

Solaris 7 re-implemented the DNLC algorithm. Now, memory is allocated
dynamically, and path names with more than 30 characters are cached, too.
Mr. Storm pointed to Adrian Cockroft answers a reader’s question on <A
TARGET="external" CLASS="external">Sun World Online Letters
Section :

You can set the DNLC to be as big as you like. You should benchmark Solaris
7 as it has a new, faster DNLC implementation that has the extra feature of
knowing that a directory is totally cached in the DNLC, so it doesn’t need
to scan the disk to ascertain that a new filename isn’t already in use.

Solaris 8 6/00, further enhances the DNLC, see the
CLASS="external" TARGET="external">System Administration Supplement for
enlightenment. The improved DNLC is now capable of caching negative hits,
that is, to verify the non-existence of a file. I reckon that there be
cache coherence protocols employed, so an application polling for the
existence of a lock file will be notified as soon as possible.

Since 8 6/00 : default 1, recommended : don’t touch

The switch enables the DNLC for large directories. There is no need to
touch, but if problem occur, then set this variable to 0, to turn of the
caching of large directories.

Since 8 6/00 : default 40, minimum 0, maximum MAXUINT, recommended : don’t touch
Since 8 6/00 : default MAXUINT, minimum 0, maximum MAXUINT, recommended : don’t touch

MAXUINT may have different concrete values, depending on the kernel
running in 32 bit or 64 bit mode.

The dnlc_dir_min_size places a minimum limit on the
directories which will eventually be cached. It looks as if the default
value is a balance between the overhead of setting up the cache for the
directory, and by-passing the cache. It is one of the usual problems that
caching comes not for free. For this reason, it is strongly suggested not
to decrease the default. If performance problems occur when caching small
directories, increase the minimum default. From the
CLASS="external" TARGET="external">System Administration Supplement :

Note that individual file systems might have their own range limits for
caching directories. For instance, UFS limits directories to a minimum of
ufs_min_dir_cache bytes (approximately 1024 entries),
assuming 16 bytes per entry.

If performance problems occur with large directories, then enforce a
limit on the cachable directory using dnlc_dir_max_size.
The dnlc_dir_enable parameter might be another switch to
disable the new DNLC of (overly) large directories.

default 2 % of main memory, no immediate recommendations, maximum 20 %

Now, considering the SVR3 buffer cache described by <A
HREF="#MB86">Maurice Bach [11], this parameter specifies the maximum
memory size allowed for the kernel buffer cache. The 0 value reported by
sysinfo says to take 2 % of the main memory for buffer caches.
sysdef -i shows the size in bytes taken for the buffer cache.

Refer to the NFS Server Performance and Tuning Guide for SUN HW
for further documentation on this parameter. I have seen Squid admins
increasing this value up to 10 %, also a recommendation for dedicated NFS
servers with a relatively small memory system. On a larger system, the
bufhwm variable may need to be limited to prevent the
system from running out of the operating system kernel virtual address

The buffer cache is used to cache inode, indirect block, and cylinder
group related disk I/O only. If you change this value, you have to enter
the number of kByte you want for the buffer cache. Please keep in mind that
you are effectively ’double buffering’, if you increase this value in
conjunction with a proxy-cache like Squid.

If you have your system accounting up and running, you can check and
monitor your buffer cache with the sar -b command - check with
the manual page on how to run sar. The numbers in the columns
titled as %rcache and %wcache are reported for
the read hit rate and write hit rate respectively. You need to tune your
system, if your read hit rate falls below 90 % and/or your write hit rate
falls below 65 %.

default number of available pages excluding kernel core and data, recommendation : don’t touch

This is more or less a debug or test value to simulate a system with
less memory than actually available.

default 8192, 16384 for sun4u in 64bit mode, recommendation : don’t touch

This parameter affects the size of the stack of a kernel thread
(light weight process, LWP) at the time of its creation.
Increasing this value will result in almost every kernel thread to use a
larger stack, most of the time eating memory resources without using them.
If your system panic due to running out of stack space, chances are that
there is something wrong with your application.

default 6484, no recommendations

This parameter specifies the size of the quota table. Many standalone
webservers or proxies don’t use quotas.

default 9, no recommendations

This parameter determines how many STREAMS modules you are allowed to
push into the Solaris kernel - I guess this is a per user or per process
count. The only application of widespread use which may need such a kernel
module is xntp. Even with other modules pushed, usually you
have sufficient room and no need to tweak this parameter.

default 65536, no recommendations

This parameter determines the maximum size of a message which is
to be piped through the SYSV STREAMS.

default 1024, no recommendations

The maximum size of the control part of a STREAMS message.

default 30, no (immediate) recommendations
default 5, no (immediate) recommendations

The autoup value determines the maximum age a modified
memory page. The fsflush kernel daemon wakes up every five
seconds as determined by the tune_t_fsflushr interval. At
each wakeup, it checks a portion of the main memory - the quotient of
autoup divided by tune_t_fsflushr. The
pages are queued to the pageout kernel daemon, which forms it
into clusters for faster write access. Furthermore, the
fsflush daemon flushed modified entries from the inode caches
to disk !

Some squid admins recommend lowering this value, because at high disk
loads, the fsflush effectively kills the I/O subsystem with
its updates, unless the stuff is flushed out fairly often. Steward Forster
notes that this is justifiable, because squid writes disjoint data sets and
rarely does multiple writes to the same disk block. If

 /usr/proc/bin/ptime sync

reports the time spent for updating the disks above five seconds on
several occasions, you can consider lowering autoup among
several options. Please note that a larger bufhwm will
take longer to flush. Also, the settings of ufs_ninode and
ncsize have an impact on the time spent updating the
disks. Setting the value too low has harmful impact on your performance,

There are also instances, where increasing the
autoup makes sense. Whenever you are using synchronous
writes like NFS or raw database partition, fsflush has little
to do, and the overhead of frequent memory scans are a hindrance. Refer to
Adrian Cockroft [2] for a more detailed enlightenment
on the subject. I never claimed that tweaking your kernel is easy nor

default 0 (sun4d) or 1 (sun4m), recommended : see text

Adrian Cockroft explains in
TARGET="external" CLASS="external">What
are the tunable kernel parameters for Solaris 2 ?
this parameter. The
parameter determines the external cache controller prefetches. You have
to know your workload. Applications with extensive floating point
arithmetic will benefit from prefetches, thus the parameter is turned on
on personal workstations. On random access databases with little or no
need for float point arithmetic the prefetch will likely get into the
way, therefore it is turned off on server machines. It looks as if it
should be turned off on dedicated squid servers.

Since 2.6 : default ?, recommended : don’t touch
Since 2.6 : default 0, recommended : see CERT CA-98.06, or DE-CERT. Limited to sun4[mud] platforms !
Warning : This option might crash some of your application software, and endanger your system’s stability !

By default, the Solaris 32 bit application stack memory areas are set
with permissions to read, write and execute, as specified in the SPARC and
Intel ABI. Though many hacks prefer to modify the program counter saved
during a subroutine call, a program snippet in the stack area can be used
to gain root access to a system.

If the variable is set to a non-zero value, the stack defaults to read
and write, but not executable permissions. Most programs, but not all, will
function correctly, if the default stack permissions exclude executable
rights. Attempts to execute code on the stack will kill the process with a
SIGSEGV signal and log a message in kern:notice. Program which
rely on an executable stack must use the mprotect(2) function
to explicitly mark executable memory areas.

Refer to the
TARGET="external" CLASS="external">System Administration Guide for more
information on this topic. Admins which don’t want the report about
executable stack can set the noexec_user_stack_log
variable explicitly to 0.

Also note that the 64 bit V9 ABI defaults to stacks without execute

Since 7 or 2.6 with patch >= 105181-09 applied : default 0, recommended 1
Since 8 : remove from /etc/system

Priority paging is an advanced memory paging technique which enhances
the responsiveness of the system. If the file system is used heavily,
Solaris may suffer from the file system cache stealing pages from
applications. High performance clusters almost always benefit from the
priority paging. The more memory you have, the better it is to actively
avoid swapping.

Please refer to
CLASS="external" TARGET="external">Priority Paging page by Richard
McDougall, Triet Vo, and Tom Pothier. The paper rumours about an
appropriate kernel patch for Solaris 2.5.1.

There is one drawback, though, or a feature for some of us : If you data
has the executable bit set, it can fool the virtual memory management into
believing it is treating a real executable, and thus will not engage
priority paging for that data.

The Solaris 8 operating environment introduces a new file system caching
architecture, which subsumes the Solaris 7 Priority Paging functionality.
The system variable priority_paging should not be set in the Solaris 8
operating environment, and should be removed from the directory
/etc/system when systems are upgraded to the Solaris 8
operating environment.

default 256, recommended : increase on busy servers
Since 8 : 512, still increase on busy servers

The tcp connection hash size determines the size of the table where
Solaris keeps all interesting information like RTO, MSS, windows and states
on any TCP connection. You can check the current content of the table with
the ndd command :

$ ndd /dev/tcp tcp_conn_hash
tcp_conn_hash_size = 256
  TCP      dest            snxt     suna     swnd       rnxt     rack     rwnd
rto   mss   w sw rw t recent   [lport,fport] state
251 f5bcf2a8 204a5e77 204a5e77 0000032120 e6255721 e6255721 0000034752
02000 01448 1 00 00 1 002a16c0 [22, 1022] TCP_ESTABLISHED

The default size is printed when investigating the table. If you have
a busy server, you might want to consider increasing the table’s size.
Mr. Storm reports that SUN increases the hash size up to 262144 for
web server benchmarks.

default 0, recommended : read text, NFS only

If the value is set to 1, the NFS service daemon by places the restriction
on the client to use a privileged port, see nfsd(1m). It is said
to make it a little more difficult to abuse
TARGET="external" >Leendert’s NFS shell, if the server is thus
set up.

Some services use a multitude of caches files like Squid or some News
server where names (URLs or articles) are mapped by a hash function to a
shallow directory tree, helping the buffer cache and inode caches of the
host file system (compared to using unlimited subdirectories like the CERN
cache). As well-known in software engineering, the speedup by using the
right algorithm
usually far exceeds anything you can achieve by
fiddling with the hardware or tweaking system parameters. Still, the
services can be helped by proper tuning of ncsize and

7.3 System V IPC related entries

Many applications still use the (old) SYSV IPCs. The System V IPC can be
ordered into the three separate areas message queues, shared memory and
semaphores. With Solaris you have an easier and faster API to achieve the
same ends with Unix sockets or FIFOs, shared memory through
memory maps, see mmap(2), and file locks instead of
semaphores. Due to the reduced need for System V IPC, Solaris has decreased
the resources for System V IPC drastically. This is o.k. for stand alone
servers, but personal workstations may need increased resources.

In some cases large database applications or VRML viewer use System V
IPC. Thus you should consider increasing a few resources. The active
resource can be determined with the sysdef -i command.
Relevant for your inspection are the parts rather at the end, all having
IPC in their names.

At first glance, the System V IPC resources
for message queues and semaphores seem to be disabled by default. This is
not true, because the necessary modules are loaded dynamically into the
kernel as soon as they are referenced. The default System V shared memory
uses 1 MB main memory. Proxy and webserver may even want to decrease this
value, but database servers may need up to 25 % of the main memory as
System V shared memory.

* personal workstations using mpeg_play, or vic
set shmsys:shminfo_shmmax=16777216

The entries in /etc/system for all System V IPC related
informations contains the prefix msgsys:msginfo_ <A
HREF="sysvipc.html#msg">for message queues, the prefix
semsys:seminfo_ for
and the prefix shmsys:shminfo_ <A
HREF="sysvipc.html#shm">for shared memory. After the prefixes starts
the resource identifier, all lower case letters, for the corresponding
value displayed by the sysdef command, e.g.
shmmax for the value of SHMMAX. The meaning of
the parameters can be obtained from any programming resource on System V
ICP, e.g. Stevens’ [3]. If anything, you only need to
change the value for SHMMAX.

7.4 How to find further entries

There are thousands of further items you can adjust. Every module which
has a device in the /dev directory and a module file somewhere
in the kernel tree underneath /kernel can be configured with
the help of ndd. Whether you have to have superuser privileges
depends on the access mode of the device file.

There is a way to get your hands on the names of keys to tweak. For
instance, the System V IPC modules don’t have a related device file. This
implies that you cannot tweak things with the help of ndd.
Nevertheless, you can obtain all clear text strings from the module file in
the kernel.

strings -a /kernel/sys/shmsys # possible
nm /kernel/sys/shmsys # recommended

There is a number of strings you are seeing. Most of the strings are
either names of function within the module or clear text string passages
defined within. Strings starting with shminfo are the names of
user tunable parameters, though. Now, how do you separate tunable
parameters from the other stuff ? I really don’t know. If you have some
knowledge about Sun DDI, you may be able to help me to find a recommendable
way, e.g. using _info(9E) and mod_info.

The interesting part, though, is to configure devices and modules with
the SUN supported way to do things, and that means using ndd.
Please refer to the ndd section on how to
use ndd for changing values non-permanently. Remember, if you
want to know what names there are to tweak, use the question mark special

Of course, you can only change entries marked for read and write. If you
are satisfied with your settings, and want to store the configuration as a
default at boot time, you can enter your preferred values into the
/etc/system file. Just prefix the key with the module name and
separate both with a colon. You did see this earlier the System V IPC page,
and the same will be shown for 100 Mbit ethernet.

8. 100 Mbit ethernet and related entries

This section focuses on the hme fast ethernet interface,
but some ways to do things may be applicable to other interface cards, too.
Please refer to the SUN Platform Notes : The hme Fast Ethernet Driver
for a detailed introduction of the handling of the fast ethernet device.
Refer to that document for the use of lance_mode,
pace_size and ipg0 through

8.1 The hme interface

The current section can only be regarded as a quick introduction into a
more complex theme. The focus is on the selection of the best performing
data mode when inter-operating with switches and employing
auto-negotiation. Refer to the
network cards support full duplex (SUN FAQ)
for an overview which
interfaces support what data mode. Users of a Solaris 2.5.1 have to use
TARGET="external" CLASS="external">Patch for 2.5.1 and auto
, in order to use auto negotiation successfully. The release
notes of the patch state :

NOTE2 : For devices that do not advertise auto-negotiation and advertise
10-full-duplex and 10-half-duplex, hme will first select the
10-half-duplex. However, one can force it to 10-full-duplex (if desired).

In order to check the current setting of your 100 Mbit interfaces, you have
to use ndd. If you system is a 2.5.1, and unpatched, only rely
on the data the switch, hub or router is giving you. You should make a
special issue of back-checking the values obtained from your Solaris system
with whatever kind of link-partner you are connected to.

default : 0, see text

If there is just one hme interface installed in your system,
ndd will auto-magically select the correct one. If there is
more than one 100 Mbit interface card installed in your system, you have to
select the appropriate card you want to inspect or modify. First check the
file /etc/path_to_inst in order to identify the interface. Use
that instance number, and set the instance parameter of
the hme driver. Now all further modification or inspections will apply to
just that particular interface.

Please note the importance of the instance parameter,
if you have more than one card of the same kind installed. All inspections
or modifications to parameters described below are depending on the setting
of instance. The following set of read-only parameters
allows you to inspect the behavior of the interface :

link_status (read-only)
default : 0 or 1

With the help of the link_status parameter you can
determine whether your link is up or down. A value of 0 means that the link
is down, a value of 1 that the link is up.

link_speed (read-only)
default : 0 or 1

This parameter lets you determine the speed which has been selected for
the interface. The content is only valid, if the link is up. A value of 0
implies 10 Mbps, a value of 1 means 100 Mbps.

link_mode (read-only)
default : 0 or 1

The link_mode shows the duplex mode the link employs.
The content is only valid, if the link is up. A value of 0 means that
half-duplex is used, a value of 1 implies full-duplex. If you are detecting
half-duplex mode, and you are sure that this is unwanted, you will need to
take some of the steps described below.

transceiver_inuse (read-only)
default : 0 or 1

A value of 0 translates to "internal transceiver" and a value of 1 to
the "external transceiver".

Check the content of the link_* values carefully. If you
got all 1 values there, everything is working at optimum performance for an
hme interface, and you might want to skip to the next section. On the other
hand, if either Solaris or your link partner is telling you about
sub-optimal performance like 10 Mbps and/or half-duplex mode, and you are
absolutely sure that both partners, the Solaris host and its link partner,
are able to perform better, you might need to tweak your setup. It is a
well-known problem that auto negotiation of the link setup may fail.

You might first want to look, if your hardware thinks it is capable of
supporting the modes you intend to select. Also, you might want to check
what your interface things the link partner supports. There is a set of six
values repeating for several values to check and one set of data to set.
The asterisk * has the meaning of a wild card (like from a
shell) :

  • auto negotiation *autoneg_cap

    The ability to automagically negotiate with the link partner the link
    speed and mode.

  • 100Base-T4 ethernet *100T4_cap

    The T4 standard allows for 100 Mbps transmissions over a lower quality
    wiring, but needs four pairs of wire as compensation. T4 is not supported
    by the internal transceiver.

  • 100 Mbps full-duplex *100fdx_cap

    The ability of transmitting at a speed of 100 Mbps and full-duplex,
    sending and receiving simultaneously.

  • 100 Mbps half-duplex *100hdx_cap

    The ability to transmit with 100 Mbps, but only one direction at a time,
    either sending or receiving.

  • 10 Mbps full-duplex *10fdx_cap

    The ability of transmitting at a speed of 10 Mbps and full-duplex,
    sending and receiving simultaneously.

  • 10 Mbps half-duplex *10hdx_cap

    The ability to transmit with 10 Mbps, but only one direction at a time,
    either sending or receiving.

If you replace the asterisk with the prefix lp_
(including the underscore), you get a set of six read-only variables, which
describe the notion your interface has about its link partner. That is, the
abilities advertised by your link partner, as seen from Solaris. Check the
lp_autoneg_cap value first, because if it is 0, all the
other lp_* values have an undefined meaning.

If you replace the asterisk with no prefix (just remove it), you get
another set of six read-only variables. These variables describe the local
transceiver abilities of the hardware. Please do not be too alarmed, if the
transceiver reports to be able to support only half-duplex mode. According
to SUN, the internal transceiver can support all capabilities. Thus you
might still be able to configure full-duplex mode with the hme

Finally, if you replace the asterisk with the prefix
adv_ (including the underscore), you get yet another set of
six variables, this time writable ones, which describe the capabilities the
interface is to advertise to its link partner. After changing any values in
this set, you have to shut the interface down with the
ifconfig command, and start it up again, or temporarily
disconnect the link cable. If more than one speed capability to advertise
is activated, the items are priorized, highest priority first :

  1. adv_100fdx_cap
  2. adv_100T4_cap
  3. adv_100hdx_cap
  4. adv_10fdx_cap
  5. adv_10hdx_cap

Table 1 shows the default values for the un-prefixed and
adv_ prefixed sets. The table does not show the values for
the lp_ set, as those are determined from the link partner
capabilities. Please note that Solaris 2.5.1 and below default to
half-duplex operations. In order to use auto negotiation, you have to use
the patch mentioned above.

ability *="" *="adv_"
*autoneg_cap 1 1
*100T4_cap 0 0
*100fdx_cap 0 (Solari < 2.6)
1 (Solari >= 2.6)
0 (Solari < 2.6)
1 (Solari >= 2.6)
*100hdx_cap 1 1
*10fdx_cap 0 (Solari < 2.6)
1 (Solari >= 2.6)
0 (Solari < 2.6)
 ? (Solari >= 2.6)
*10hdx_cap 1 1

Table 1 : Default values for the internal transceiver
perceived abilities and advertisable abilities.

If you are experiencing trouble with auto negotiation, you will have to
set explicitly the values supported for your interface card. For instance,
if your link partner is not capable of auto negotiation, the correct speed
for the link, and half-duplex mode (!) will be selected. But there are
three ways to force your own choice :

  1. setting values with the help of ndd
  2. setting values in /etc/system
  3. setting values in hme.conf

Please note that setting options with ndd only works until
the next reboot. Also, you have to disconnect the link cable temporarily
for a few seconds to initiate auto negotiation of the newly set
capabilities. You should use ndd to test out a working set of
capabilities, which you can manifest later in either but not
of the files mentioned above.

default 0

If the default is active, the external transceiver will be used, if
connected to the link. Otherwise the internal transceiver will be used. If
you want to override an external transceiver, you can set this option to 1,
and force the use of the internal transceiver.

default 1, recommended 1, if possible

If you experienced severe problems with auto negotiation, you might want
to try setting this value to 0. By using the zero value, you can force
your preferred mode onto the hardward, but if your link partner does not
support the chosen mode/speed combination, you might end up with nothing
at all.

Usually the link partners like switches do auto negotiation, as well.
For instance, if you want to force the use of 100 Mbps full-duplex, it
may be necessary to set this parameter to 0 and
configure your link partner hardware manually to 100 FDX. Also, only set
one of the following parameters to 1, and all the others
to 0. This is a last resort which always used to work for me.

default 0, no recommendations

The 100Base-T4 mode is only supported by an external transceiver, and
usually not relevant for most of the hosts I know of.

default 0, recommended 1, if possible
Since 2.6 : 1
default 1, recommended 1, if possible

The fdx parameter switches the advertising of the full-duplex mode
capability, the hdx parameter of the half-duplex mode. If you experienced
problems forcing your preferred mode, you can try to set the full-duplex
parameter the opposite of the half-duplex value.

default 0, recommended 1, if possible
Since 2.6 : ?
default 1, recommended 1, if possible

The latter parameters concern 10 Mbps speed capabilities to be
advertised to a link partner. You’d probably prefer your server to work at
a degraded performance, if your link partner and you happened to disagree
on auto-negotiation, rather than not being able to reach it at all.

A few conditions on incorrectly working 100 Mbit interfaces result in a
downgrade to 10 Mbit ethernet and/or half-duplex mode. Thus check at all
available ends, if you are really getting the data rate you are expecting.
The first hints about a misconfigured interface can be obtained with the
netstat -ni input errors. Of course, good information can only
be obtained at the link partner, if it happens to be a switch or

You have to be super-user to be able to tweak the hme
device. If you are able to see any value of the hme interface
with ndd as mere mortal user, you are suffering from a severe
security hole. In that case check the access rights and ownership of the
tools, devices and module files.

After you have determined a working set of special configurations, you
can make the selection permanent by writing them into the
/etc/system file. If you have more than one hme interface
installed, you have to select the instance first. Otherwise, all
modifications are reflected on all interfaces, sometimes the
preferred way to initialize things.

In order to insert the values into /etc/system, you will
have to prefix the adv_* values with
hme:hme_. A typical entry in the /etc/system
of a patched 2.5.1 hosts sets all capability advertisements. If the auto
negotiation with the link partner works out, 100 Mbps full-duplex will be
selected :

set hme:hme_adv_100fdx_cap=1
set hme:hme_adv_100hdx_cap=1
set hme:hme_adv_10fdx_cap=1
set hme:hme_adv_10hdx_cap=1
set hme:hme_adv_autoneg_cap=1

On the other hand, a Solaris 2.5 host must force the 100 Mbps mode in
full-duplex. Additionally, the link partner has to disable its auto
negotiation capability, and you have to manually instruct it to use 100
Mbps in full-duplex mode :

set hme:hme_adv_100fdx_cap=1
set hme:hme_adv_100hdx_cap=0
set hme:hme_adv_10fdx_cap=0
set hme:hme_adv_10hdx_cap=0
set hme:hme_adv_autoneg_cap=0

A 2.6 host should work correctly at optimum performance with its
defaults, but it does not hurt to set the parameter like the patched 2.5.1
host. If you have more than one hme interface installed, and you need to
configure them differently, first you have to select the
instance as described above. Then you configure the
parameters for that interface. Afterwards you can select a different
instance and modify its configuration differently.

The other method to set the selected options permanently is to create a
hme.conf file in the /kernel/drv directory. The
contents of that file are not trivial, none of the kernel device
configuration files are ! Refer to the
TARGET="external" CLASS="external">SUN Platform Notes : The hme Fast
Ethernet Driver
for the step by step guide of how to set up

If the third way to permanently set your options with the help
ndd and a startup script looks tempting to you, you might want
to consider appending the first startup script
mentioned below. But please keep in mind that you have to shutdown and
restart any ndd configured interfaces in order to have the
options take effect.

8.2 Other problems

8.2.1 Multicast problems

If you are using the multicast backbone (MBone) of the internet, your
ethernet interface, e.g. be0 is probably the primary choice of the
multicast interface. The interface will speak to your router as detailed in
CLASS="external">RFC 1112. Prior to Solaris 2.6, the ethernet driver
allowed only for simultaneous participation in 64 multicast groups.

In previous versions of Solaris, when your multicast support ran out of
space for group participation, IP believed from the error condition that
the interface doesn’t support any multicast whatsoever. Hence, it switched
to link-level broadcasts for all multicast traffic - which does not inter
operate with other hosts still using regular multicast traffic. Upgrading
to the hme interface and Solaris >= 2.6 is said to have solved
this particular problem.

8.2.2 Number of virtual interfaces

The number of virtual interfaces supported by any interface is finite,
of course. The tunable parameter is

8.2.3 Distinct MAC addresses for multiple physical interfaces

If you have more than one ethernet interface
installed into your Solaris box, you will notice that SUNs by default use
the MAC address of the first interface for all interfaces. Actually, it
will use the MAC address burnt into the EEPROM of the motherboard. I cannot
think of good reasons to do this, except for certain high-availability
environments, so, if you want each interface to use its own MAC address,
type as super-user :

eeprom local-mac-address~?=true

9. Recommended patches

It is utterly necessary to patch you Solaris system, if you didn’t
already do so ! Have a look at the
CLASS="external">DFN CERT patch mirror or the
CLASS="external">original source from SUN. There may be a mirror closer
to you, e.g. EUNet and FUNET have their own mirrors, if I am informed

In order to increase your TCP performance, security of websites and fix
several severe bugs, do patch ! Whoever still runs a Solaris below 2.5
should upgrade to 2.6 at least. Each new version of Solaris incorporates
more new TCP features than the previous one, and bug fixes, too.

Please remember to press the Shift button on your netscape navigator
while selecting a link. If the patch is not loadable, probably a new
release appeared in the meantime. To determine the latter case, have a look
at the directories of
CLASS="external">DFN CERT or
CLASS="external">SUN . The README file on the DNF-CERT server is kept
without a version number and thus always up to date.

ip and ifconfig patch
103630-15 for Solaris 2.5.1 (README)
103169-15 for Solaris 2.5 (README)
tcp patch (only with ip patches)
103582-24 for Solaris 2.5.1 (README)
103447-10 for Solaris 2.5 (README)
hme patch
104212-13 for Solaris 2.5.1 (README)

Any system administrator should know the contents of
TARGET="external" CLASS="external">SUN’s patch page. Besides previously
mentioned patches for a good TCP/IP performance, you should always consider
the security related patches. Also, SUN recommends a set of further patches
to complete the support for large IP addresses. You should really include
any DNS related patch.

The SUN supplied patches to fix multicast problems with 2.5.1 are
incompatible with the TCP patch. Unfortunately, you have to decide
between an unbroken multicast and a fixed TCP module. Yes, I am aware that
multicast is only possible via UDP, nevertheless the multicast patch replaces
the installed TCP module. If you have problems here, ask your SUN partner
for a workaround - he will probably suggest upgrading to 2.6.

10. Literature

The current section features a set of related material containing books,
request for comments (RFCs), software and a multitude of links.

10.1 Books

Adrian Cockroft ; Sun Performance and Tuning ; SUN Microsystems Inc. ; 1995 ; ISBN 0-13-149642-5. Regrettably only up to Solaris 2.4, but most information is still valid for current Solaris systems.
The Heise Verlag offers a German translation.
[must read] Adrian Cockroft ; Sun Performance and Tuning ; 2nd edition ; SUN Microsystems Inc. ; 04’1998 ; ISBN 0-13-095249-4. The improved version on performance and tuning, covers quick tips and Solaris 2.6 as well as Java server technologies.
W. Richard Stevens ; Advanced Programming in the UNIX Environment ; Addison-Wesley Publishing Company ; Reading, MA ; 1992 ; ISBN 0-201-56317-7.
A German translation is available as : Programmieren in der UNIX-Umgebung ; ISBN 3-9319-814-8, 1995.
[must read] W. Richard Stevens ; TCP/IP Illustrated, Volume 1 - The Protocols ; Addison-Wesley Publishing Company ; Reading, MA ; 1994 ; ISBN 0-201-63346-9.
A German translation is available.
W. Richard Stevens ; TCP/IP Illustrated, Volume 2 - The Implementation ; Addison-Wesley Publishing Company ; Reading, MA ; 1995 ; ISBN 0-201-63354-X.
A German translation is available.
W. Richard Stevens ; TCP/IP Illustrated, Volume 3 - T/TCP, HTTP, NNTP, Unix Domain Sockets ; Addison-Wesley Publishing Company ; Reading, MA ; 1994 ; ISBN 0-201-63495-3.
A German translation is available.
W. Richard Stevens ; Unix Network Programming, Network APIs : Sockets and XTI ; Prentice-Hall Inc. ; Upper Saddle River, NJ ; 1998 ; ISBN 0-13-081081-9.
A German translation is not yet available.
W. Richard Stevens ; Unix Network Programming, Network APIs : Sockets and XTI ; Prentice-Hall Inc. ; Upper Saddle River, NJ ; 1998 ; ISBN 0-13-490012-X.
A German translation is not yet available.
Brian Wong ; Configuration and Capacity Planning for Solaris Servers ; SUN Microsystems Inc. ; 199 ? ; ISBN 0-13-349952-9.
A book showing host- and peripheral technoligies. Contains hints on tuning. Eases the detection of hardware errors, because it explains about the workings of the hardware (you are then able to determine, if a misbehavior is a bug or a feature).
Andrew S. Tanenbaum ;Computer Networks ; I still use the 2nd edition ; Prentice Hall Inc., 1989, ISBN 0-13162959-X (2nd) and 1996, ISBN 0-13349945-6 (3rd).
A German translation of the 2nd edition is availabe : Computer Netzwerke ; Wolfram’s Fachverlag, 1990, ISBN 3-925328-79-3.
Andrew S. Tanenbaum ; Modern Operating Systems ; Prentice Hall Inc., 1992, ISBN 0-13588187-0.
Maurice Bach ;Design of the Unix Operating System ; Prentice Hall, 1986, ISBN 0-13201799-7.
A German translation is available.

10.2 Internet resources

10.3 RFC, mentioned and otherwise

RFCs mentioned in the text :

  • RFC 793 Transmission Control Protocol (TCP, STD 7).
  • RFC 1122 Requirements for Internet hosts - communication layers (STD 3).
  • RFC 1123 Requirements for Internet hosts - application and support (STD 3), updated by RFC 2181.
  • RFC 1323 TCP Extensions for High Performance.
  • RFC 1700 Assigned numbers (STD 2), outdated, use the IANA assignments instead !
  • RFC 1918 Address Allocation for Private Internets.
  • RFC 2001 TCP Slow Start, Congestion Avoidance, Fast Retransmit, and Fast Recovery Algorithms.
  • RFC 2018 TCP Selective Acknowledgment Options.
  • RFC 2181 Clarifications to the DNS Specification.

Unmentioned, but important Internet resources, for Web services.
Compare with TARGET="external" CLASS="external">Duane Wessel’s required reading list
for Squid developers, and
CLASS="external">W3C’s change history of HTTP, or the
CLASS="external">HTTP protocol homepage. Links which are considered
essential for the topic are marked
dark green.

  • Web related RFCs :
    • RFC 1737 Functional Requirements for Uniform Resource Names (URN).
    • RFC 1738 Uniform Resource Locators (URL). Updated by RFC 1808 and RFC 2368.
    • RFC 1808 Relative Uniform Resource Locators. Updates RFC 1738, updated by RFC 2368.
    • RFC 1945 Hypertext Transfer Protocol - HTTP/1.0.
    • RFC 2017 Definition of the URL MIME External-Body Access-Type.
    • RFC 2068 Hypertext Transfer Protocol - HTTP/1.1. Obsoleted by RFC 2616.
    • RFC 2069 An Extension to HTTP : Digest Access Authentication. Obsoleted by RFC 2617.
    • RFC 2109 HTTP State Management Mechanism.
    • RFC 2145 Use and Interpretation of HTTP Version Numbers.
    • RFC 2169 A Trivial Convention for using HTTP in URN Resolution.
    • RFC 2186 Internet Cache Protocol (ICP), version 2.
    • RFC 2187 Application of Internet Cache Protocol (ICP), version 2.
    • RFC 2192 IMAP URL Scheme.
    • RFC 2224 NFS URL Scheme.
    • RFC 2227 Simple Hit-Metering and Usage-Limiting for HTTP.
    • RFC 2255 The LDAP URL Format. Obsoletes RFC 1959.
    • RFC 2295 Transparent Content Negotiation in HTTP.
    • RFC 2296 HTTP Remote Variant Selection Algorithm — RVSA/1.0
    • RFC 2368 The mailto URL scheme. Updates RFC 1738 and RFC 1808.
    • RFC 2384 POP URL Scheme.
    • RFC 2396 Uniform Resource Identifiers (URI) : Generic Syntax.
    • RFC 2397 The "data" URL scheme
    • RFC 2483 URI Resolution Services Necessary for URN Resolution.
    • RFC 2518 HTTP Extensions for Distributed Authoring — WEBDAV.
    • RFC 2616 Hypertext Transfer Protocol — HTTP/1.1. Obsoletes RFC 2068.
    • RFC 2617 HTTP Authentication : Basic and Digest Access Authentication. Obsoletes RFC 2069.
    • RFC 2717 Registration Procedures for URL Scheme Names (BCP 35).
    • RFC 2718 Guidelines for new URL Schemes.
  • TCP related RFCs :
    • RFC 793 Transmission Control Protocol (TCP, STD 7).
    • RFC 879 TCP maximum segment size and related topics.
    • RFC 896 Congestion control in IP/TCP internetworks.
    • RFC 1001 Protocol standard for a NetBIOS service on a TCP/UDP transport : Concepts and methods (STD 19).
    • RFC 1002 Protocol standard for a NetBIOS service on a TCP/UDP transport : Detailed specifications (STD 19).
    • RFC 1072 TCP extensions for long-delay paths. Obsoleted by RFC 1323 and RFC 2018.
    • RFC 1122 Requirements for Internet hosts - communication layers (STD 3).
    • RFC 1123 Requirements for Internet hosts - application and support (STD 3), updated by RFC 2181.
    • RFC 1144 Compressing TCP/IP headers for low-speed serial links.
    • RFC 1185 TCP Extension for High-Speed Paths. Obsoleted by RFC 1323.
    • RFC 1263 TCP Extensions Considered Harmful.
    • RFC 1323 TCP Extensions for High Performance. Obsoletes RFC 1072 and RFC 1185.
    • RFC 1337 TIME-WAIT Assassination Hazards in TCP.
    • RFC 1379 Extending TCP for Transactions — Concepts.
    • RFC 1644 T/TCP — TCP Extensions for Transactions Functional Specification.
    • RFC 2001 TCP Slow Start, Congestion Avoidance, Fast Retransmit, and Fast Recovery Algorithms. Obsoleted by RFC 2581.
    • RFC 2018 TCP Selective Acknowledgement Options. Obsoletes RFC 1072.
    • RFC 2140 TCP Control Block Interdependence.
    • RFC 2398 Some Testing Tools for TCP Implementors (FYI 33). Obsoletes RFC 1739.
    • RFC 2415 Simulation Studies of Increased Initial TCP Window Size.
    • RFC 2488 Enhancing TCP Over Satellite Channels using Standard Mechanisms (BCP 28).
    • RFC 2525 Known TCP Implementation Problems.
    • RFC 2581 TCP Congestion Control. Obsoletes RFC 2001.
    • RFC 2582 The NewReno Modification to TCP’s Fast Recovery Algorithm.
  • DNS related RFCs :
    • RFC 1034 Domain names - concepts and facilities (STD 13) obsoleted by RFC 1065, RFC 2308 ; updated by RFC 1101, RFC 1183, RFC 1348, RFC 1876, RFC 1982, RFC 2065, RFC 2181, RFC 2308, RFC 2535.
    • RFC 1035 Domain names - implementation and specification (STD 13) updated by RFC 1101, RFC 1183, RFC 1348 (1706), RFC 1876, RFC 1982, RFC 1995, RFC 1996, RFC 2065, RFC 2181, RFC 2136, RFC 2137, RFC 2308, RFC 2535.
    • RFC 1101 DNS encoding of network names and other types. Updates RFC 1034, RFC 1035.
    • RFC 1183 New DNS RR Definitions. Updates RFC 1034, RFC 1035.
    • RFC 1464 Using the Domain Name System To Store Arbitrary String Attributes.
    • RFC 1706 DNS NSAP Resource Records.
    • RFC 1712 DNS Encoding of Geographical Location.
    • RFC 1713 Tools for DNS debugging (FYI 27).
    • RFC 1794 DNS Support for Load Balancing.
    • RFC 1876 A Means for Expressing Location Information in the Domain Name System (Updates RFC 1034, 1035).
    • RFC 1886 DNS Extensions to support IP version 6.
    • RFC 1982 Serial Number Arithmetic.
    • RFC 1995 Incremental Zone Transfer in DNS (Updated RFC 1035).
    • RFC 1996 A Mechanism for Prompt Notification of Zone Changes (DNS NOTIFY) (Updates RFC 1035).
    • RFC 2052 A DNS RR for specifying the location of services (DNS SRV).
    • RFC 2136 Dynamic Updates in the Domain Name System (DNS UPDATE, Update RFC 1035).
    • RFC 2137 Secure Domain Name System Dynamic Update.
    • RFC 2163 Using the Internet DNS to Distribute MIXER Conformant Global Address Mapping (MCGAM).
    • RFC 2168 Resolution of Uniform Resource Identifiers using the Domain Name System.
    • RFC 2181 Clarifications to the DNS Specification.
    • RFC 2182 Selection and Operation of Secondary DNS Servers (BCP 16)
    • RFC 2219 Use of DNS Aliases for Network Services (BCP 17)
    • RFC 2230 Key Exchange Delegation Record for the DNS.
    • RFC 2308 Negative Caching of DNS Queries (DNS NCACHE). Obsoletes RFC 1034, Updates RFC 1034 and RFC 1035.
    • RFC 2352 A Convention For Using Legal Names as Domain Names.
    • RFC 2535 Domain Name System Security Extensions.
    • RFC 2536 DSA KEYs and SIGs in the Domain Name System (DNS).
    • RFC 2537 RSA/MD5 KEYs and SIGs in the Domain Name System (DNS).
    • RFC 2538 Storing Certificates in the Domain Name System (DNS).
    • RFC 2539 Storage of Diffie-Hellman Keys in the Domain Name System (DNS).
    • RFC 2540 Detached Domain Name System (DNS) Information.
    • RFC 2541 DNS Security Operational Considerations.
    • RFC 2606 Reserved Top Level DNS Names (BCP ??)
    • RFC 2671 Extension Mechanisms for DNS (EDNS0).
    • RFC 2672 Non-Terminal DNS Name Redirection.
    • RFC 2673 Binary Labels in the Domain Name System.
    • RFC 2694 DNS extensions to Network Address Translators (DNS_ALG).
  • Further services :

Also of interest in the regard of webservices may be a bunch of related
drafts, partially expired, still sprouting with ideas. Compare with the <A
HREF="" TARGET="external"
CLASS="external">IETF - Hypertext Transfer Protocol (HTTP) Working
Group published documents and
CLASS="external">W3C’s change history of HTTP :

More recently, the work of the IETF WREC (web replication and caching)
working group was created. Its first effort deals with a taxonomy for terms
related to replication services and cache services, including proxy

10.4 Further material

Software by SUN - no support offered !

  • Have a look at the excellent GNU- and Freeware collection for Solaris systems. There is a mirror near you, too ! The collections includes a proctool performance monitor package.
  • In December 1998, Sun released SyMON 2.0, a complete rewrite and update of its system monitoring product, which includes a version of the rule set that Adrian developed as its health monitor. The release of SymbEL 3.* updates the SE toolkit.

11. Solaris’ Future

This section will deal with forthcoming releases of the Solaris operating

11.1 Solaris 7

Solaris 7 was announced the end of October 1998. There are many exciting
new things in Solaris 7, and I am not talking about the 64 bit
capabilities. The readers of this page are probably as interested, what
bugs are fixed, extensions are implemented and features are available.
Note, even though it is called Solaris 7, the uname
command will still return 5.7, thus being staying compatible with many
scripts which are in circulation.

The interested reader will, of course, want to skip through the pages
mentioned above. For the impatient, here are the most interesting features
for speeding up your webrelated services :

  • SACK

    One feature you definitely want to read more about are the selective
    acknowledgments (SACK)
    , in accordance with <A
    TARGET="external" CLASS="external">RFC 2018 - TCP Selective Acknowledgment
    Options. The availability of the SACK feature is negotiated during
    connection initiation. But the actual selective acknowledgment itself is
    sent from the data sink to the data source specifying the ranges of that
    data which was received correctly. The SACK option will lead to less data
    being retransmitted, as only lost or damaged segments need to be

  • mount option noatime

    The new mount option allows to mount file systems without having to
    update the inodes at each access to any file. This will significantly help
    to speed up services like web caches or news servers, which do a lot of
    file IO with small files. Other than the creation and modification times,
    the access time is neither for web content nor news files necessary. You’d
    only want to mount your cache or news partitions that way, thus saving
    inode updates andl eaving more important inodes in the buffer cache

  • priority paging

    Priority paging is an advanced memory paging technique which enhances
    the responsiveness of the system, see the CLASS="internal" TARGET="internal">appropriate system tuning section.
    Also refer to
    CLASS="external" TARGET="external">Priority Paging page by Richard
    McDougall, Triet Vo, and Tom Pothier.

  • mount option logging

    The UFS logging feature keeps a transaction log within the thus mounted
    partition. The advantage is an almost instantaneous filesystem check -
    which may take a considerable while with larger harddisks, e.g. 18 GB. The
    disadvantage is the additional time spent writing the transaction log. Due
    to the log being kept on the same physical disk, I wouldn’t recommend it
    for cache nor news partitions.

  • stdio supports FDs up to 64k

    The stdio library now understands about file descriptors above and
    beyond 256. Increasing the soft limit of concurrently open file descriptors
    will now be less contraproductive.

    You can try a little test program to check
    your FD limits. Remember to use the appropriate parameters for 64bit
    mode -xtarget=ultra -xarch=v9.

  • poll() and select()

    The poll() system call was improved to allow for even more
    file descriptors to be tested more often. The select() code in
    64bit mode allows for 64k file descriptors.

11.2 Solaris 8

Solaris 8 did a lot of work in the TCP tunable section, aimed at further
performance improvements for Internet servers and services.

Also, Solaris 8 offers IPv6 without needing to obtain extra packages. If
enabled, IPv6 support is integrated into many regular places. Still, for <A
HREF="" TARGET="external">a secure
Solaris installation, it is recommended to neither install Kerberos nor

If you are installing Solaris 8 for Intel, and you would like to use the
stand-alone installation, boot from the 2nd CD-ROM. My installation with
the web-installer failed frequently on different machines, and the
stand-alone installation (my favourite, anyway) was the only way to get

Solaris 8 media kit now comes with many highly usable open source
programs like gcc 2.95.2 (the SPARC optimizer might still be brain-dead, if
using -mcpu=ultrasparc), perl 5.005_03, ghostscript 5.10,
olvwm, rxvt, tiff, XPM, flex, bison, automake and many more.

If you upgrade to Solaris 8, clean out your /etc/system.
Several of the parameters changed meaning, and should no longer be set in
/etc/system. Look at pt_cnt and

I am still collecting more material about Solaris 8 !

11.3 Solaris 9


12. Uncovered material

There are a bunch of parameters which I didn’t cover in the sections
above, but some of which may be worth looking at, among these
tcp_ip_abort_linterval (the correct version),

13. Scripts

For the important tweakable parameters exist startup scripts for
Solaris. Only the first script is really necessary.

  1. The first script changed all parameters deemed
    necessary and described in the previous sections. The file should be called
    something like /etc/init.d/nettune and you must link
    (hardlinks preferred, symbolic links are o.k.)
    /etc/rcS.d/S31nettune to the init.d file.

    SUN recommends to run control scripts like nettune between S69inet and S72inetsvr.

    Please read the script carefully before installing. It is a rather
    straight-forward shell script. The piping and awking isn’t as bad as
    it looks :

    • The script is also part of the YaSSP setup, and thus contains a few variables relating to YaSSP. Ignore them, if confused.
    • The initial check is sanity : Only Solaris systems should run this script.
    • There is no stop action for the script. Allowed actions include start to set parameters, and no argument, which just lists the current value of any parameter that the script would touch.
    • If there is a YaSSP configuration file, read it.
    • Always go for high security settings.
    • The first line sets the PATH to standard values and prints a message. For all messages which are not to contain a linefeed, we have to include a backslash c.
    • The modlist function changes a parameter to one or a list of values. Depending on the state of certain variables, only the status is display, the status is displayed before changed, or a value is changed silently.
    • The variable $osver is set with the operating system major and minor version number times ten : Solaris 2.6 AKA SunOS 5.6 will set $osver to 560 and Solaris 2.5.1 AKA SunsOS 5.5.1 will be counted as 551.
    • $patch looks into the installed kernel TCP module, because it mustn’t be assumed that /var is already mounted. The result is either 0 for an unpatched system (or some error in the pipeline), or the applied TCP patch level. For non-2.5.1 systems, you have to change this line to your needs. All 2.5.1 system (Sparc, x86 and PPC) will be recognized.
    • The next if tree just prints a message about the patch found.
    • Depending on your OS version and the installed patch, we either have a single value of tcp_conn_req_max to tweak, or the twin values of tcp_conn_req_max_q and tcp_conn_req_max_q0.
    • The section about retransmission related tweaks follows.
    • Depending on your OS version and the installed patch level, we may have a parameter tcp_slow_start_initial to tweak. This parameter is said to have a mighty effect, if you have many BSD or MS clients complaining about a slow service.
    • The final sections are indicated by their respective comments and messages. There are a few things commented out, as they may not represent universally popular decisions. Please read the accompanying comment carefully, and decide for yourself, if you want to uncomment any of the options. Uncommenting should not hurt on leaf hosts, or hosts behind firewalls. Hosts acting as routers should reconsider.
    • The file ends in the change log.

    Always tune the parameters to your needs, not mine. Thus,
    examine the values closely.

  2. The second script just changes the MTU of
    le0 from the IPX to the IEEE 802.3 size. The meaning is shown
    further up. The script is not strictly necessary, and
    reports about odd behavior may have ceeded with a patched 2.5.1 or a

    Since I observed the erratic behavior only in a Solaris 2.5, I believe
    it has been fixed with patch 103169-10, or above. The error description
    reads "1226653 IP can send packets larger than MTU size to the driver."

    If you intend to go ahead with this script, the file is called
    /etc/init.d/nettune2 and you need to create a link to it
    (hard or soft, as above) as /etc/rc2.d/S90nettune2. Please
    mind that GNU awk is used in the script, normal awk does not seem to work

  3. As this is the scripts section, I should remention the <A
    HREF="ndd.txt">nifty script kindly supplied by Mr. Kroonmaa. It allow
    the user to check on all existing values for a network component (tcp,
    udp, ip, icmp, etc.). Previously, I did something
    similar in Perl,
    but nothing as sophisticated until I saw Mr.
    Kroonmaa’s script. He is really talented with scripts.

  4. There is a little helper, which
    lets you inspect a bunch of kernel related parameters. The script was
    supplied by Mr. Kroonmaa, and minimally modified by myself.
    It displays the contents of
    and is extensible to your needs. For the settings
    of these parameters, refer to Adrian Cockroft [2].
    You should remember to set the access rights to the script to only allow
    root and admins to use it, i.e. change it to group adm, and
    use mode 0750.

    Another word of warning to this script, if you intend
    to use the absolute debugger (adb), you’d better know what you
    are doing.

14. List of things to do

This section is not about things you have to do, but rather
about items which I think of being in need to be reworked. Thus it
is more a kind of meta-section.

  • This page is definitely getting to large, even for me, who works on a LAN. I don’t know about you out there, but I guess putting the sections into pages of their own might speed things up. On the other hand, if you say "print" on this page, you will get (almost) everything. What do you think ?
  • I am looking only at the downstream of web documents, which mostly will be TCP bulk data transfer. I haven’t looked into the upstream direction (yet), as requests constitute interactive traffic, because they are not segment sized. Therefore, depending on further factors, requests might be hindered by delayed ACKs and NAGLE.
  • The retransmission section needs to be reworked due to the erratic behavior of 2.5.1 TCP, if it loses the initial SYN segment. Solaris 2.6 is well-behaved in this regard. Also I should finish the few examples which show what is going on.
  • Andres Kroonmaa asked for many /etc/system values to be put up that are in the meantime documented in SUN’s Solaris Tunable Reference Manual.
  • Mr. Kroonmaa suggested to extend on the on-the-fly kernel changes with the help of adb, especially those parameters, which are not accessible with ndd. Anybody out there more familiar with adb ?
  • Test what happens, if Solaris runs out of buffer memory for TCP or UDP. When does the ceiling apply, and does it start to swap out processes ?
  • POSIX.1g and TCP_KEEPALIVE implementation with Solaris 2.6 documentation.

< !—>

Sun, Sun Microsystems, the Sun Logo and Solaris are trademarks or
registered trademarks of Sun Microsystems, Inc. in the United States
and other countries.

Valid CSS! Please send your suggestions, bugfixes, comments, and ideas for new items to
In hope of supplying useful information, Jens-S. Vöckler

Last Modified : Saturday, 25-May-2002 05:30:28 MEST

Commentaires  Forum fermé


Articles de la rubrique

  • TCP IP


Dernière mise à jour

mardi 9 novembre 2021


275 Articles
Aucun album photo
Aucune brève
6 Sites Web
2 Auteurs


112 aujourd’hui
159 hier
904991 depuis le début
1 visiteur actuellement connecté
